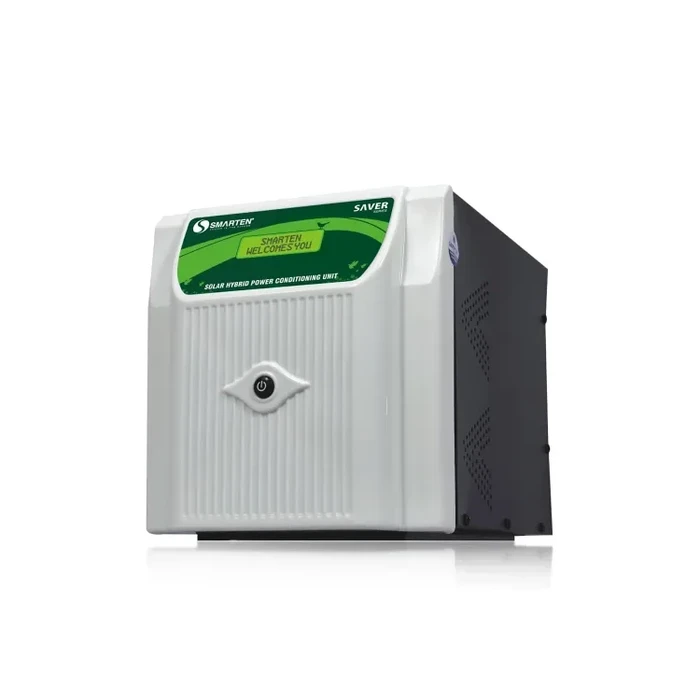

Smarten Saver Series 3200VA 24V Pure Sine Wave Dual-Battery Hybrid Solar PCU with Advanced PWM Controller, Under 10ms UPS Transfer & 90V Low-Voltage Smart Charging | SAVER 3200
Up to Rs 750.00 OFF
Up to Rs 7,000.00 OFF
Up to Rs 16,000.00 OFF
Rs 20,000.00 OFF
| Specification Attribute | Technical Detail |
| Brand | Smarten |
| Series / Range | Saver Solar PCU Series |
| Model / Item Designation | SAVER 3200 (3200VA / 24V) |
| Product Type | Pure Sine Wave Dual-Battery Hybrid Solar PCU |
| Generic / Common Name | 3200VA Solar Inverter / 24V Solar PCU / Heavy-Duty Solar UPS |
| Power Rating & Power Factor | 3200 VA | 0.8 Power Factor |
| System DC Operating Voltage | 24 V DC (Requires 2 x 12V Batteries in Series) |
| Inverter Technology | Microcontroller-Based Technology Using High-Speed MOSFETs & DSP |
| Output Waveform | Pure Sine Wave (Noiseless, Motor & Sensitive Equipment Safe) |
| Output Voltage & Regulation | 220V AC +5% -10% (Until battery low alarm) | 50 Hz ± 0.2 Hz |
| Solar Charge Controller | Built-in Advanced PWM (Pulse Width Modulation) |
| Solar Priority & Sharing | 100% Solar Priority with Smart Solar & Grid Load Sharing |
| Selectable Charging Current | 100Ah–135Ah: 12A/15A ± 2A | 150Ah–220Ah: 15A/20A ± 2A |
| Low-Voltage Charging Capability | Active Smart Charging Down to 90V Mains Input Voltage |
| Battery Compatibility | Flooded Lead Acid, Tall Tubular & Sealed Maintenance Free (SMF) |
| Deep Discharge Recovery | Inbuilt Independent Battery Charger (Revives Deep Discharged Batteries) |
| Mains Bypass Feature | Allows Direct Mains Supply Bypass Without Connecting Batteries |
| Changeover Transfer Time | Less than 10 milliseconds (< 10 ms Computer-Safe UPS Mode) |
| Operational Modes | Smart UPS Mode (for IT/PC loads) & WUPS Mode (Wide Window) |
| Circuit Protections | Short-Circuit, Overload, Wiring Fault, High Input Voltage, Reverse Connections, Over-Temperature, Reverse PV & High PV Protection |
| User Interface / Display | Graphical LCD Display for Live Status Monitoring |
| Mounting Type & Form Factor | Table Top Enclosure |
| Dimensions (L x W x H) | 350 x 230 x 310 mm |
| Target Power Systems | Multi-Story Residences, Healthcare Clinics, Corporate Offices & Retail Shops Across Nepal |
| Best Used For | Running Deep Freezers, Photocopiers, Washing Machines, IT Workstations & Lowering Electricity Bills |
-
Microcontroller & MOSFET Pure Sine Wave Power: Delivers 3200VA clean, stable electricity (0.8 Power Factor) with advanced DSP technology, safely operating heavy appliances like refrigerators, deep freezers, photocopiers, and PCs without motor hum or overheating.
-
100% Solar Priority & Smart Sharing: Inbuilt advanced PWM solar charge controller automatically manages smart sharing between solar and grid power, maximizing clean energy usage to reduce electricity bills.
-
Dual-Battery 24V Architecture with Wide Compatibility: Runs on two 12V batteries in series with selectable charging current options (12A/15A for 100Ah-135Ah and 15A/20A for 150Ah-220Ah), supporting Flooded Lead Acid, Tubular, and SMF batteries.
-
Ultra-Fast Transfer & Battery-Free Mains Bypass: Features a changeover time under 10 milliseconds in UPS mode to keep IT equipment running smoothly, and allows users to bypass mains electricity without connecting batteries.
-
Zero-Volt Battery Recovery & 90V Low-Voltage Charging: Includes an independent internal charger to revive deeply discharged batteries from zero volts, with continuous smart charging operating down to 90V mains input.
