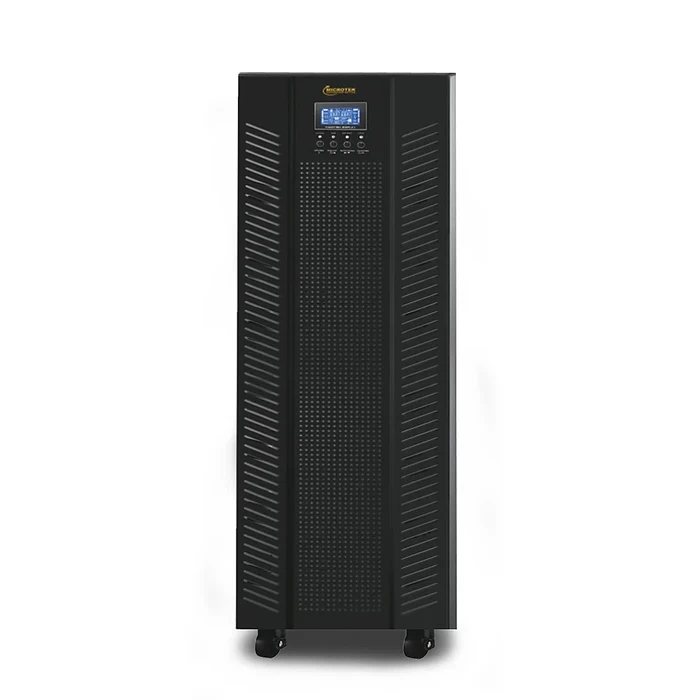

Microtek Max+ 6KVA/4800W True Online Double-Conversion UPS (192V EB Model) | High-Performance DSP Control Technology | Unity Power Factor Output Option & Pure Sine Wave Output
10% OFF
| Specification : | |
| Brand | Microtek |
| Model | ONLINE UPS 6KVA 1PH:1PH 192V (HF) |
| Capacity | 6000VA / 4800W |
| DC Voltage Configuration | Default: 192 VDC |
| Topology | Double-Conversion Online UPS |
| Processor Technology | DSP (Digital Signal Processor) Based |
| Phase Wiring | Single Phase Input / Single Phase Output |
| Nominal Input Voltage | 208 / 220 / 230 / 240 VAC |
| Input Voltage Range (50% Load) | 110V to 300VAC (plus or minus 3%) |
| Input Voltage Range (100% Load) | 176V to 300VAC (plus or minus 3%) |
| Input Frequency Range | 46 Hz to 54 Hz |
| Input Power Factor | Greater than 0.99 @ 100% Load |
| Nominal Output Voltage | 208 / 220 / 230 / 240 VAC |
| Output Power Factor | Default: 0.8 |
| AC Voltage Regulation | plus or minus 1% (Battery Mode) |
| Total Harmonic Distortion (THD) | Linear Load: Less than 1% |
| Output Waveform | Pure Sine Wave |
| Transfer Time | AC Mode to Battery Mode: Zero (0 ms) |
| Overload Capability (AC Mode) | 100% - 110%: 10 Min |
| Crest Ratio | 3:1 Max |
| Standard Efficiency | Up to 94% |
| Communication Ports | USB, RS-232, SNMP (Optional Card Slot) |
| Operating Noise Level | Less than 50 dBA @ 1 Meter (With Smart Fan Speed Control) |
| Safety Features | Inbuilt Surge Protection with OVCD, In-built TDR, Maintenance Bypass, Emergency Power Off (EPO) |
-
True Double-Conversion DSP Technology: Delivers highly stable, clean output power by isolating connected devices from all grid power issues with a zero-millisecond transfer time.
-
Flexible 192V to 240V EB DC Bus: Features an adjustable DC bus design supporting default 192VDC configurations, with options to scale to 216VDC or 240VDC based on operational runtime needs.
-
High Efficiency & Eco Mode Saving: Reaches up to 94% efficiency in standard online double-conversion mode, featuring an ECO mode to optimize performance and reduce office operating costs.
-
Smart Monitoring & EPO Integration: Outfitted with an easy-to-read static LCD display, RS-232/USB/SNMP communication ports, and a built-in Emergency Power Off (EPO) switch for remote management.
-
Multi-Layer Fault & Surge Defense: Equipped with in-built surge protection, an Over Voltage Cut-Off Device (OVCD), a Time Delay Relay (TDR), maintenance bypass, and structural fan failure protection.
