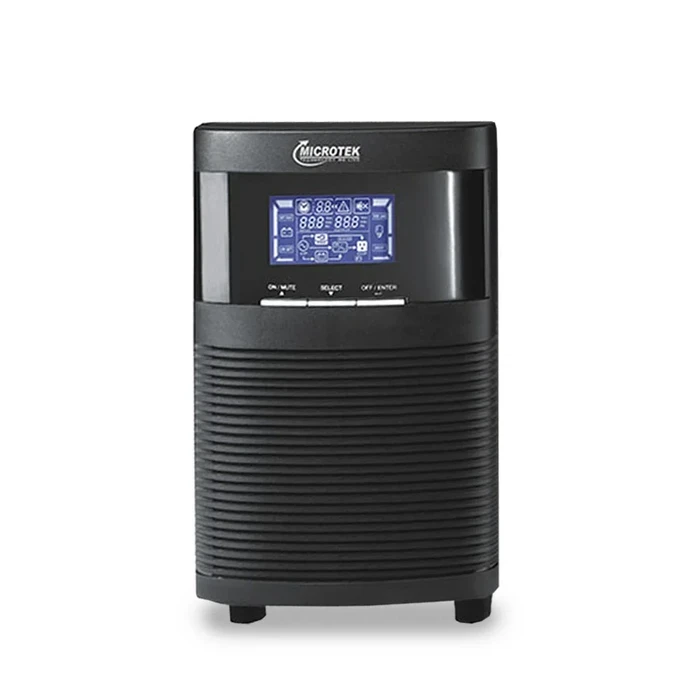

Microtek E2 1KVA/800W True Online Double-Conversion UPS (NM36EM1KK11) | Built-In 36VDC SMF Battery Bank (12V 9Ah x 2) | Pure Sine Wave Output, Zero Transfer Time & Smart LCD Display
10% OFF
| Specification : | |
| Brand | Microtek |
| Model Name / Number | Online UPS E2 / NM36EM1KK11 |
| Capacity | 1KVA / 800 W |
| DC Voltage System | 36 VDC |
| Topology | Double-Conversion Online UPS |
| Input Phase | Single Phase with Ground |
| Input Voltage Window | 110VAC plus or minus 5% to 300VAC plus or minus 5% |
| Input Frequency Range | 40 Hz to 70 Hz |
| Input Power Factor | Greater than 0.99 at Full Load |
| Configurable Output Voltages | 200V / 208V / 220V / 230V / 240VAC |
| AC Voltage Regulation | plus or minus 1% (Battery Mode) |
| Output Frequency Range | 50Hz plus or minus 0.25Hz OR 60Hz plus or minus 0.3Hz (Battery Mode) |
| Output Waveform | Pure Sine Wave |
| Transfer Time | AC Mode to Battery Mode: 0 ms / Inverter to Bypass: Less than 4 ms (Typical 2.5ms) |
| Total Harmonic Distortion (THD) | Less than 2% (Linear Load) / Less than 4% (Non-Linear Load) |
| AC Mode / Battery Mode Efficiency | 88% / 83% |
| In-Built Battery Type & Count | SMF (Sealed Maintenance Free) 12V / 9Ah x 2 Nos. |
| Internal Charging Current | 1 Ampere (Supports optional external charger up to 8 Amps) |
| Net Weight | 4.08 KGS |
| Physical Dimensions (L x W x H) | 282 mm x 145 mm x 220 mm |
| Noise Level | Less than 50 dBA at 1 Meter (With Smart Fan Speed Control) |
| Environment Temp. & Humidity | 0 to 40 degrees Celsius / 20 to 95% RH (Non-Condensing) |
| Optional Expansion Interfaces | SNMP Card for Web Management, Isolation Transformer, Alarm Mute Mode |
-
True Double-Conversion Zero-Transfer Power: Employs an online double-conversion topology that completely isolates equipment from grid issues, delivering absolute zero transfer time (0 ms) from AC to battery mode.
-
In-Built 36V SMF Battery System: Comes fully equipped with two integrated 12V 9Ah sealed maintenance-free batteries, eliminating messy external wiring and simplifying space-saving installation.
-
Smart LCD Display & Monitoring: Features a high-visibility, front-panel LCD screen giving real-time data on active battery capacity, input/output voltage levels, load percentage, and active alerts.
-
Heavy-Duty Safety & OVCD Protection: Engineered with an Over Voltage Cut-Off Device (OVCD) and robust surge protection to insulate sensitive downstream hardware from catastrophic power spikes.
-
Highly Configurable & Smart Management: Offers multiple user-selectable output voltage options (200V to 240V AC) and supports an optional SNMP card for complete, browser-based remote power management.
