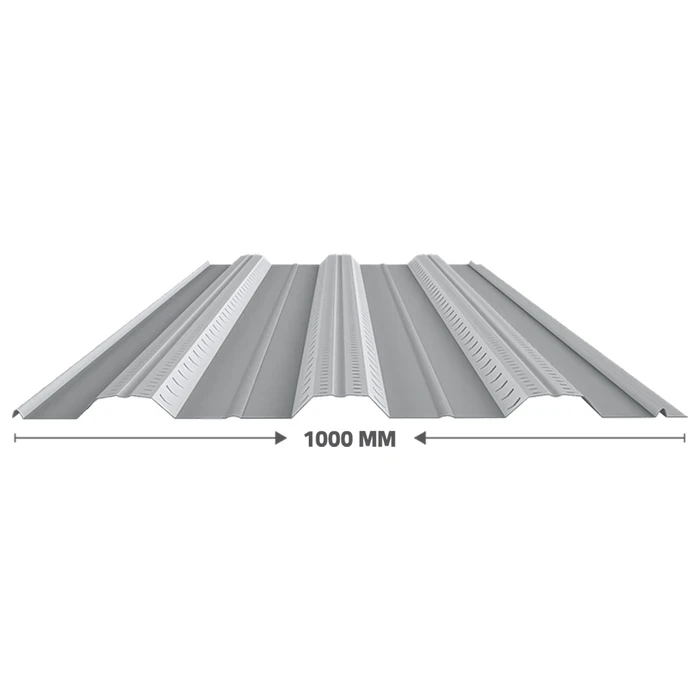

The Hulas Deck Profile is a sophisticated structural decking system engineered with "Composite-Slab-Logic" to serve as permanent formwork for concrete floor slabs. Manufactured to Japanese Standards, this high-strength zinc-coated steel profile eliminates the need for temporary timber or plywood shuttering, providing an immediate safe working platform for construction trades. The structural logic of the "Bottom-Reinforcement-System" allows the steel deck to act as the primary tensile reinforcement once the concrete hardens, significantly reducing the amount of rebar required. Featuring an Effective Width of 1000mm, this profile maximizes coverage speed and structural efficiency in multi-story residential, commercial, and industrial infrastructure projects across Nepal.

Section Properties

Thickness (mm)	Unit Weight (Kg/m2)	Moment of Inertia (cm4)	Section Modulus (cm3)
0.75	6.92	36.39	20.75
0.8	7.38	41.91	21.6
1.1	10.15	42.93	29.41
1.2	11.08	62.76	32.07

Load Carrying Capacity (Safe Load in Kg/m2)

Thickness (mm)	1.00m Span	1.20m Span	1.40m Span	1.60m Span	1.80m Span	2.00m Span
0.75	2732.64	1895.55	1390.82	1063.22	838.62	677.97
0.8	2844.98	1973.43	1447.91	1106.82	872.98	705.71
1.1	3871.91	2685.72	1970.49	1506.28	1188.02	960.36
1.2	4221.64	2928.31	2148.47	1642.33	1295.32	1047.10

Composite Reinforcement Logic: Engineered to function as a permanent working platform during construction and as essential bottom tensile reinforcement after concrete curing.
Rapid Formwork Efficiency: Eliminates the time-consuming installation and removal of temporary shuttering, significantly accelerating floor slab construction timelines in high-rise projects.
High-Strength Structural Profile: Features optimized Moment of Inertia and Section Modulus values to support heavy wet concrete loads and construction traffic with minimal deflection.
Premium Zinc-Alloy Coating: Manufactured from high-grade steel with a 120 GSM zinc coating to provide elite-level corrosion resistance and long-term structural integrity.
Japanese Engineering Precision: Built to rigorous Japanese Standards, ensuring consistent thickness and effective width for a seamless, stable, and environment-friendly building solution.
