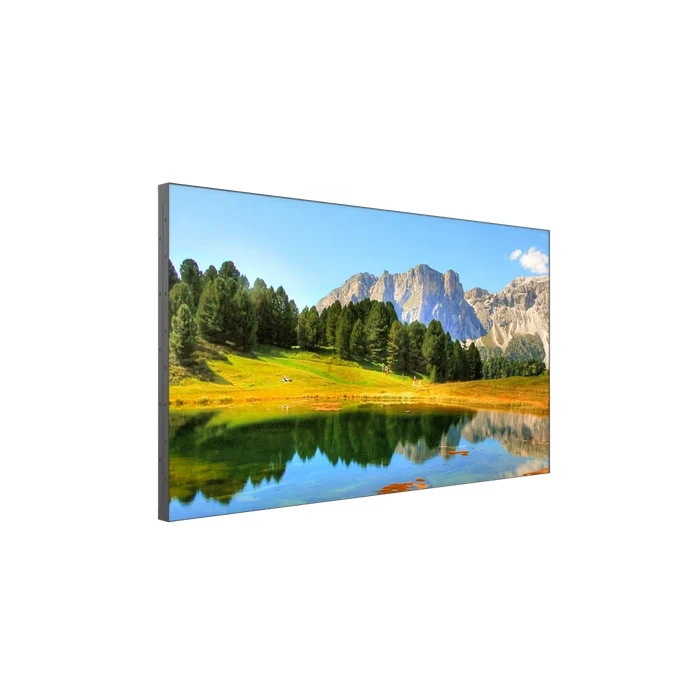

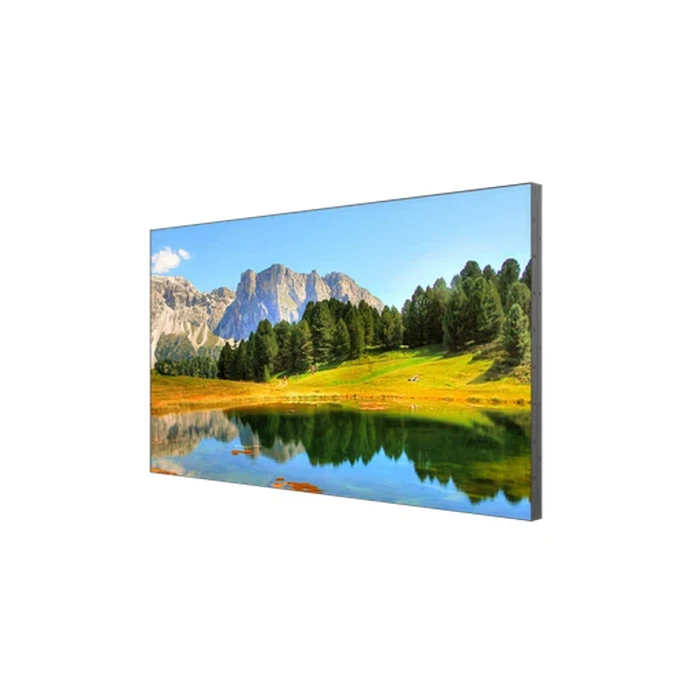

Uniview 55" Full HD Commercial LCD Video Wall Display | 3.5mm Ultra-Narrow Bezel 24/7 DLED ADS Panel | MW-A55-B1-E
Up to Rs 750.00 OFF
Up to Rs 7,000.00 OFF
Up to Rs 16,000.00 OFF
Rs 20,000.00 OFF
| Feature | Details |
| Brand | Uniview (UNV) |
| Model Number | MW-A55-B1-E |
| Panel Size & Type | 55 Inch / ADS Panel (Advanced Super Dimension Switch) |
| Native Resolution | Full HD 1920 × 1080 @ 60 Hz |
| Physical Bezel Width | 3.5 mm Combined (2.3 mm Top/Left, 1.2 mm Bottom/Right) |
| Backlight Type & Brightness | Direct LED (DLED) with Local Dimming / 450 cd/m² (up to 500 cd/m²) |
| Contrast Ratio & Response Time | 1200:1 / 8 ms |
| Viewing Angles (H / V) | 178° Horizontal / 178° Vertical |
| Color Support & Gamut | 16.7 Million Colors / 72% NTSC |
| Surface Treatment | Anti-Glare Haze 25%, 2H Hardness (Front Polarizer) |
| Pixel Density & Pitch | 40 ppi / 0.63 × 0.63 mm |
| Video Inputs | 1 × HDMI, 1 × DVI, 1 × VGA, 1 × CVBS, 1 × DisplayPort (DP) |
| Video Outputs | 1 × HDMI (Loop Through) |
| Control & Peripheral Ports | 2 × RS232, 1 × USB 2.0, 1 × IR Interface, 1 × Keypad Button |
| Duty Cycle & Lifetime | 24/7 Continuous Duty / 50,000 Hours (MTBF: 50,000 Hours) |
| Chassis Material | Industrial SECC (Electro-Galvanized Steel) |
| Power Supply & Typical Consumption | AC 200–240V (50/60 Hz) / 180 Watts |
| Product Dimensions (W × H × D) | 1213.5 mm × 684.3 mm × 89.89 mm |
| Product Weight | Net Weight: 14.9 kg / Gross Weight: 19.2 kg |
| Installation & Features | Landscape & Portrait, Anti-Burn-In, Delayed Power-On Boot, Built-in Splicing |
| Best Used For | Security Operations Centers (SOC), Traffic Command Hubs, Boardrooms & Public Video Walls |
-
Ultra-Narrow 3.5mm Physical Bezel: Combines a 2.3mm (Top/Left) and 1.2mm (Bottom/Right) edge design that minimizes seam lines for continuous multi-screen matrix arrays.
-
Continuous 24/7 Mission-Critical Reliability: Built with industrial ADS panel technology and direct-lit LED backlighting rated for 50,000 hours MTBF continuous operation in control rooms.
-
Full HD 1080p Image Performance: Features 1920 × 1080 native resolution, 450–500 cd/m² luminance, and a 1200:1 contrast ratio across wide 178° viewing angles with white balance correction.
-
Integrated Hardware Splicing & HDMI Loop-Out: Built-in multi-screen splicing engine and HDMI loop-through video output allow easy daisy-chaining and video signal distribution without external splitters.
-
Shielded SECC Metal Enclosure: Rigid electro-galvanized cold-rolled steel chassis shields internal electronics from radiation and magnetic field interference, with support for landscape and portrait mounting across Nepal.
