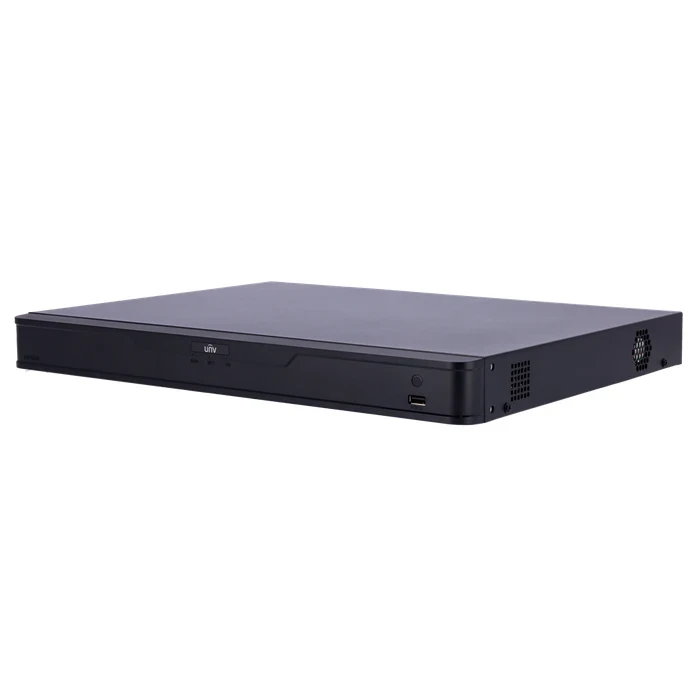

Uniview 32 Channel 4 SATA 4K Smart Network Video Recorder | 160 Mbps Ultra H.265 AI AcuSearch 40TB Storage | NVR304-32B-IQ
Up to Rs 750.00 OFF
Up to Rs 7,000.00 OFF
Up to Rs 16,000.00 OFF
Rs 20,000.00 OFF
| Feature | Details |
| Brand | Uniview (UNV) |
| Series / Range | Easy Series |
| Model Number | NVR304-32B-IQ |
| Product Type | 32-Channel 4 SATA Smart Network Video Recorder |
| IP Video Inputs | 32 Channels |
| Camera Compatibility | Uniview, ONVIF (Profile S, Profile G, Profile T), RTSP |
| Network Bandwidth | 160 Mbps Incoming / 128 Mbps Outgoing |
| Video Compression | Ultra H.265, H.265, H.264 |
| Decoding Capability (Smart Off) | 2 × 12MP@30, 2 × 4K@30, 4 × 4MP@30, 10 × 1080P@30, 20 × 720P@30, 32 × D1 |
| Decoding Capability (Smart On) | 2 × 4K@30, 4 × 4MP@30, 8 × 1080P@30, 16 × 720P@30, 32 × D1 |
| HDMI Output | 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200, 1280 × 1024, 1024 × 768 |
| VGA Output | 1920 × 1080/60Hz, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768 |
| Recording Resolutions | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Recording Modes | Manual, Programmed (Schedule), Motion Detection |
| Corridor Mode Displays | 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32 Windows |
| Internal Storage | 4 SATA Interfaces, Up to 10 TB per HDD (Max 40 TB total) |
| Smart Analytics (by NVR) | SIP (Up to 2-ch), UMD (Up to 4-ch), AcuSearch Target Tracking |
| Smart Analytics (by IPC) | Human/Vehicle/Two-Wheeler Line Crossing & Intrusion, People Counting, Area Entry/Exit |
| Vehicle Photo Library | Up to 5 libraries (Up to 25,000 vehicle photos total) |
| VCA & Target Search | Vehicle Search, Non-Motor Vehicle Search, AcuSearch, People Counting Report, Heat Mapping |
| Audio Interface | 1 Input / 1 Output RCA (Bidirectional Audio) |
| Network Interfaces | 2 × RJ45 10M/100M Ethernet Interfaces |
| USB Interfaces | Front: 1 × USB 2.0; Rear: 1 × USB 3.0, 1 × USB 2.0 |
| Power Supply & Consumption | DC 12V / 5A (≤ 12W without HDD) |
| Dimensions & Weight | 440 mm (W) × 350 mm (D) × 48 mm (H) / 3.4 kg (without HDD) |
| Operating Temperature | -10 °C ~ +55 °C, Humidity ≤ 90% RH (Non-condensing) |
| Best Used For | Commercial Hubs, Industrial Warehouses, Campuses & High-Density Surveillance Rigs |
-
32-Channel 4K Decoding & Ultra H.265 Compression: Decodes up to 2×12MP/4K@30fps, 4×4MP@30fps, or 10×1080P@30fps with Ultra H.265, H.265, and H.264 formats, backed by 160 Mbps incoming bandwidth.
-
Large 4 SATA Storage Capacity (Up to 40 TB): Accommodates 4 SATA HDDs up to 10 TB each, providing ample local recording space for extended retention cycles across dense multi-camera installations.
-
AcuSearch & Intelligent Smart Analytics: Integrates NVR-based Smart Intrusion Prevention (SIP up to 2-ch), Ultra Motion Detection (UMD up to 4-ch), live target AcuSearch, people counting reports, and heat mapping.
-
Integrated 25,000 Vehicle Photo Database: Supports up to 5 vehicle picture libraries holding up to 25,000 reference images for rapid vehicle verification and automated perimeter access checks.
-

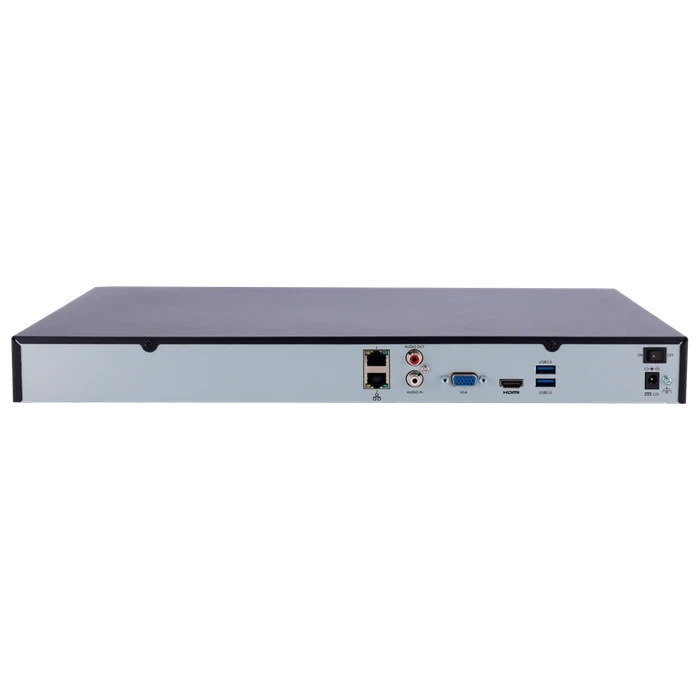

Dual Display Outputs & Comprehensive I/O: Equipped with independent 4K HDMI (3840 × 2160) and 1080P VGA outputs, dual RJ45 Ethernet ports, USB 3.0 backup, ANR edge fallback storage, and RCA bidirectional audio across Nepal.
