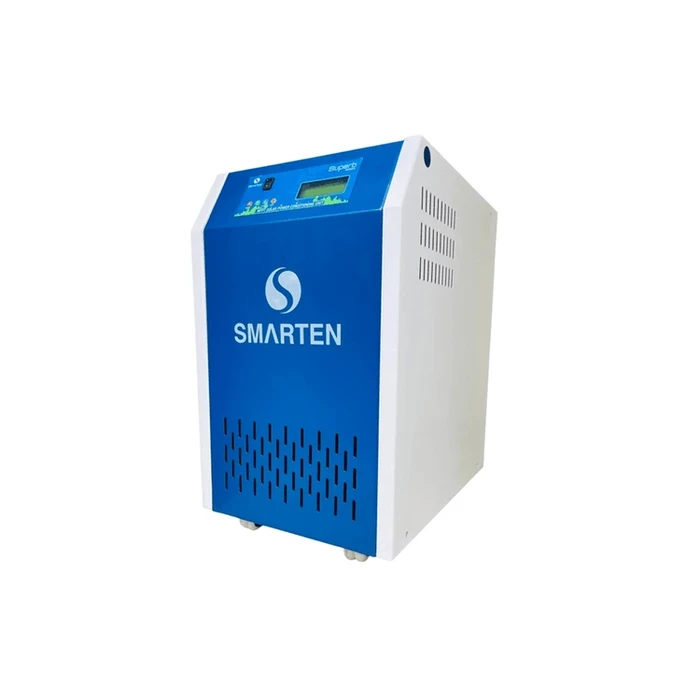

Smarten Superb Series 5500VA (5.5 kVA) 48V Pure Sine Wave Heavy-Duty Commercial Solar PCU with 30% Boost MPPT, Bypass Switch, Triple MCB & Zero-Volt Recovery | SUPERB MPPT 5500
Up to Rs 750.00 OFF
Up to Rs 7,000.00 OFF
Up to Rs 16,000.00 OFF
Rs 20,000.00 OFF
| Specification Attribute | Technical Detail |
| Brand | Smarten |
| Series / Range | SUPERB MPPT Solar PCU Series |
| Model / Item Designation | SUPERB MPPT 5500 |
| Product Type | Heavy-Duty Pure Sine Wave Commercial Solar PCU (HKVA) |
| Generic / Common Name | 5.5 kVA Solar Inverter / 48V MPPT Solar PCU / Commercial Solar Backup Station |
| Capacity / Rating | 5500 VA (5.5 kVA) |
| System DC Operating Voltage | 48 V DC (Requires 4 x 12V Batteries in Series) |
| Output Waveform | Pure Sine Wave (Noiseless, Motor & Sensitive Equipment Safe) |
| Control Architecture | Advanced High-Speed DSP (Digital Signal Processing) |
| Solar Charge Controller | Advanced MPPT (Up to 30% More Efficient than PWM) |
| Solar Priority Logic | Automatic Preference to Solar Power over Utility Grid |
| Battery Compatibility | Tall Tubular, Flat Plate & Sealed Maintenance Free (VRLA / SMF) |
| DOD (Depth of Discharge) Settings | Selectable 4-Level Discharge Limits: 20%, 30%, 40%, 50% |
| Mains AC Input Window | 90V AC – 290V AC (Active Smart Charging down to 90V) |
| Deep Discharge Recovery | Integrated Recovery Circuitry (Revives from Zero Volt & Zero Gravity) |
| Grid Charging Control | Grid Charging Enable / Disable Option (For Reduced Electricity Bills) |
| Circuit Protection & Safety | Triple MCB Isolation (Mains, Solar & Battery), Back-feed, Phase-to-Phase, Short-Circuit & Overload |
| Bypass Switch Feature | Manual Bypass Switch for Direct Grid Output (Active during PCU Fault or Maintenance) |
| Operational Modes | Selectable UPS Mode (IT / Computer Safe) & WUPS Mode (Wide Window) |
| Display Interface | Big Multi-Parameter LCD Display (Mains, Solar, Battery, Output & Faults) |
| Target Power Systems | Commercial Petrol Pumps, Dental Clinics, Corporate Offices & Large Residences Across Nepal |
| Best Used For | Air Conditioners, Water Geysers, Heavy Photocopiers, Dental Chairs & Whole-Facility Solar Power |
-
30% More Efficient MPPT Architecture: Built-in MPPT solar charge controller extracts up to 30% more energy from solar arrays than conventional PWM systems, optimizing battery charging even in low-light and cloudy conditions.
-
Heavy-Duty 5.5 kVA Pure Sine Wave Power: Supplies clean, undistorted electricity across a 48V platform to run heavy commercial loads—such as air conditioners, water geysers, fuel station pumps, dental chairs, and photocopiers—without motor hum or overheating.
-

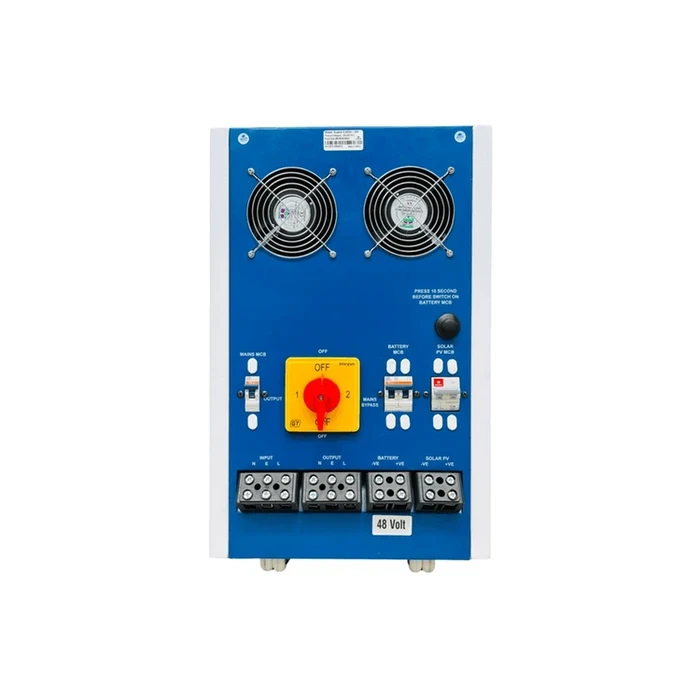

Triple MCB Protection & Manual Grid Bypass: Features dedicated circuit breaker isolation for Input Mains, Solar PV, and Battery banks, complemented by a manual bypass switch allowing direct grid throughput during maintenance.
-
Zero-Volt Battery Recovery & 90V Smart Charging: Capable of reviving deeply discharged batteries from zero volts and zero gravity, with active multi-stage smart charging operating down to 90V mains input across a 90V–290V window.
-
Smart Power Optimization & Big LCD Display: Equipped with user-configurable Depth of Discharge levels (20%, 30%, 40%, 50%), a grid-charging disable switch to slash electricity bills, and a large LCD tracking live solar, battery, mains, and load data.
