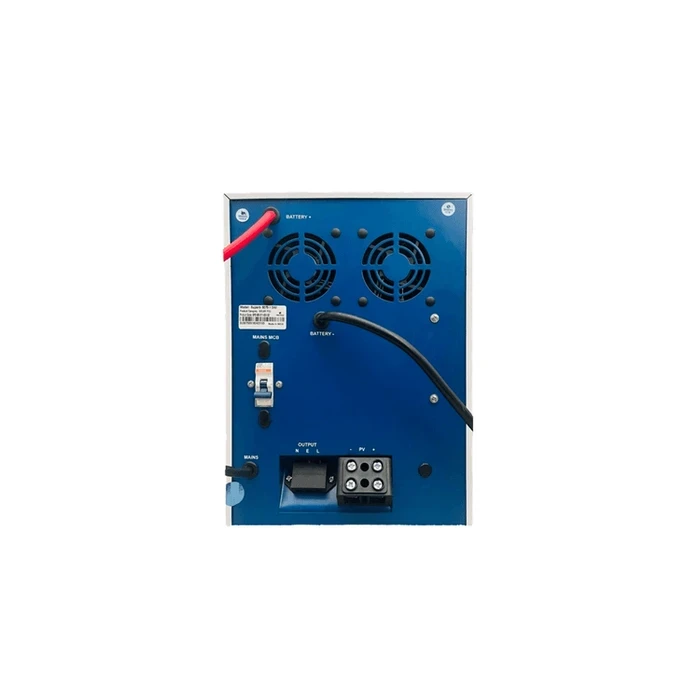

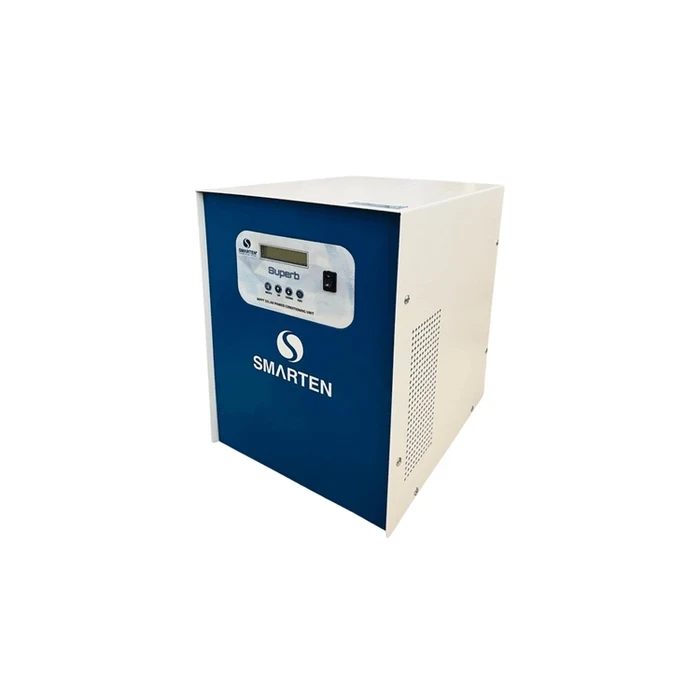

Smarten Superb Series 3.2 kVA (3200VA) 24V Pure Sine Wave Hybrid Solar PCU with Advanced MPPT Controller, 1500W PV Support & LCD Display | SUPERB MPPT 3200
Up to Rs 750.00 OFF
Up to Rs 7,000.00 OFF
Up to Rs 16,000.00 OFF
Rs 20,000.00 OFF
| Specification Attribute | Technical Detail |
| Brand | Smarten |
| Series / Range | SUPERB MPPT Solar PCU Series |
| Model / Item Designation | SUPERB MPPT 3200 (3200VA / 24V) |
| Product Type | Pure Sine Wave Hybrid Solar PCU (Power Conditioning Unit) |
| Generic / Common Name | 3.2 kVA Solar Inverter / MPPT Solar PCU / 24V Solar UPS |
| Capacity / Rating | 3200 VA (3.2 kVA) |
| System DC Operating Voltage | 24 V DC (Requires 2 x 12V Batteries in Series) |
| Solar Charge Controller | Advanced MPPT (Maximum Power Point Tracking) |
| Maximum Solar Panel Capacity | Up to 1500 W |
| Maximum PV Input Voltage | 85 V |
| Maximum Battery Charging Current | 50 A |
| Overall System Efficiency | Up to 93% |
| Output Waveform & Quality | Pure Sine Wave (Total Harmonic Distortion $\le$ 5% THD) |
| Output Voltage & Regulation | 220 V AC ± 5% |
| Cooling & Thermal Management | Temperature-Controlled Automatic Cooling Fan (0°C to 50°C Operating Range) |
| User Interface / Display | Multifunctional LCD Display (Status, PV Current, Battery Voltage, Charging Current) |
| Battery Compatibility | Tall Tubular, Flat Plate & Sealed Maintenance Free (VRLA / SMF) |
| Protection Systems | Short-Circuit, Overload, Over-Temperature, Reverse Battery, Back-feed & Low Battery Cutoff |
| Target Power Systems | Residential Solar Backup, Offices, Retail Shops & Commercial Setups Across Nepal |
| Best Used For | Water Lifting Pumps, Refrigerators, Deep Freezers, Computer Networks & Whole-Facility Solar Power |
-
Advanced MPPT Technology (Up to 93% Efficiency): State-of-the-art Maximum Power Point Tracking extracts optimal energy from up to 1500W of solar panels with an 85V maximum PV input voltage.
-
High-Capacity 3.2 kVA Pure Sine Wave Engine: Generates clean 220V AC (±5%) power with $\le$5% THD, safely operating refrigerators, deep freezers, commercial photocopiers, and water pumps without motor hum or thermal stress.
-
Dual-Battery 24V DC Architecture: Runs on two 12V batteries in series, significantly lowering transmission current and resistive line losses while enhancing conversion efficiency.
-
Fast 50A Maximum Battery Charging: Delivers up to 50A charging current to accelerate battery replenishment from combined solar and grid inputs, ensuring readiness during frequent power cuts.
-
Multifunction LCD Screen & Multi-Tier Safeguards: Backlit digital screen monitors PV voltage, battery charging current, and load status, reinforced by protections against back-feed, short circuits, overloads, and reverse polarity.
