Industrial Heavily Galvanized Gabion Boxes | Double-Twisted Hexagonal Wire Mesh | High-Strength Rock Baskets for Erosion Control and Retaining Walls
10% OFF
10% OFF

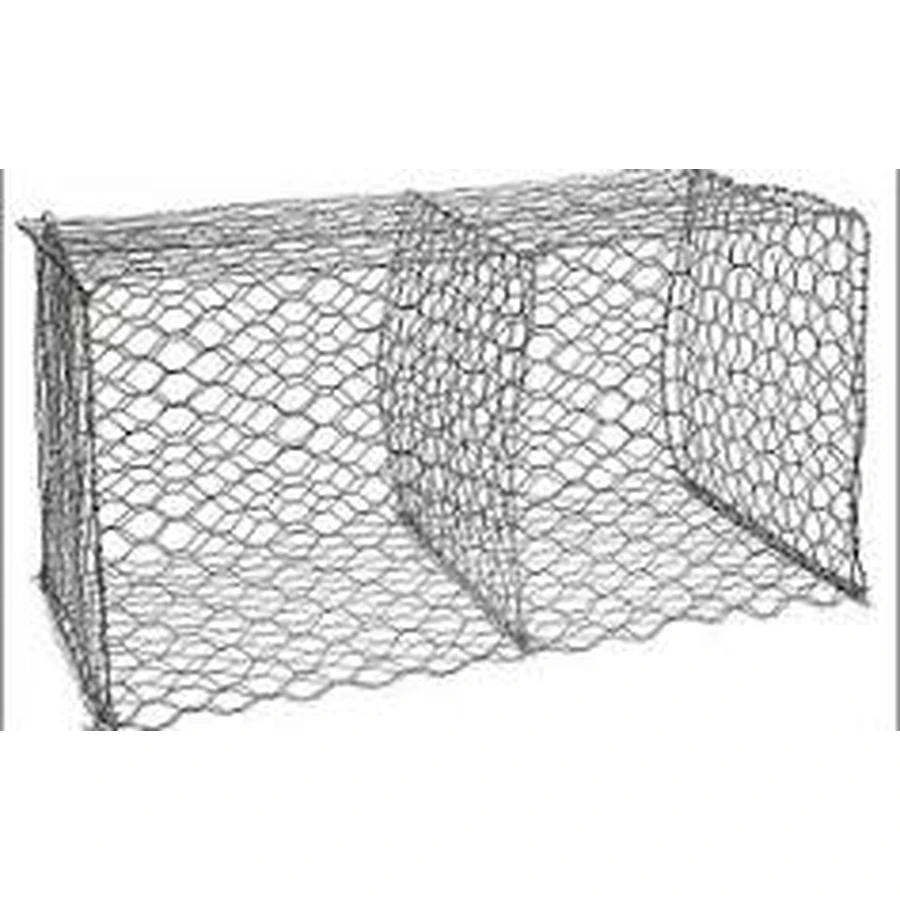

Gabion Boxes are rectangular wire mesh baskets manufactured from high-quality, heavily galvanized steel wire. These units are shipped flat and then assembled on-site into a box shape, which is filled with durable stones or rock fragments. The structural logic relies on the double-twisted hexagonal mesh design, which ensures that the box does not unravel even if individual wires are cut or damaged. This flexible structure allows the gabion to settle and deform without failing, making it superior to rigid concrete for soil stabilization in earthquake-prone regions. These boxes are primarily used for constructing retaining walls, riverbank protection, culvert headwalls, and slope reinforcement. Their porous nature allows for natural water drainage, reducing hydrostatic pressure behind the structure.
|
Specification Category |
Gabion Box Details |
|
Mesh Type |
Double-Twisted Hexagonal |
|
Standard Sizes |
2m x 1m x 1m, 1.5m x 1m x 1m, 3m x 1m x 1m |
|
Coating Type |
Heavily Galvanized (Zinc) / PVC Optional |
|
Mesh Opening Size |
100mm x 120mm / 80mm x 100mm |
|
Core Wire Diameter |
2.7mm to 3.0mm |
|
Selvedge Wire |
3.4mm to 3.9mm |
|
Diaphragm Logic |
Placed at 1-meter intervals |
|
Structural Logic |
Flexible Gravity Retaining System |
|
Primary Usage |
River Training, Check Dams, Slope Protection |
- Double-Twisted Mesh Logic: Manufactured using a continuous double-twist hexagonal pattern that ensures structural integrity; the mesh will not unravel even if individual wires are compromised.
- Heavy Zinc Galvanization: Every wire is coated with a high-density zinc layer to provide long-term protection against rust and corrosion in wet, riverine, or acidic soil environments.
- Flexible Structural Performance: Unlike rigid concrete walls, gabion structures can withstand tension and deform according to soil settlement without losing their load-bearing capacity.
- Permeable Drainage Design: The stone-fill structure is naturally porous, allowing water to pass through freely, which eliminates hydrostatic pressure buildup behind the wall.
- Reinforced Selvedge Edges: All mesh edges are reinforced with a thicker selvedge wire to prevent sagging and facilitate secure lacing during site assembly and stacking.
