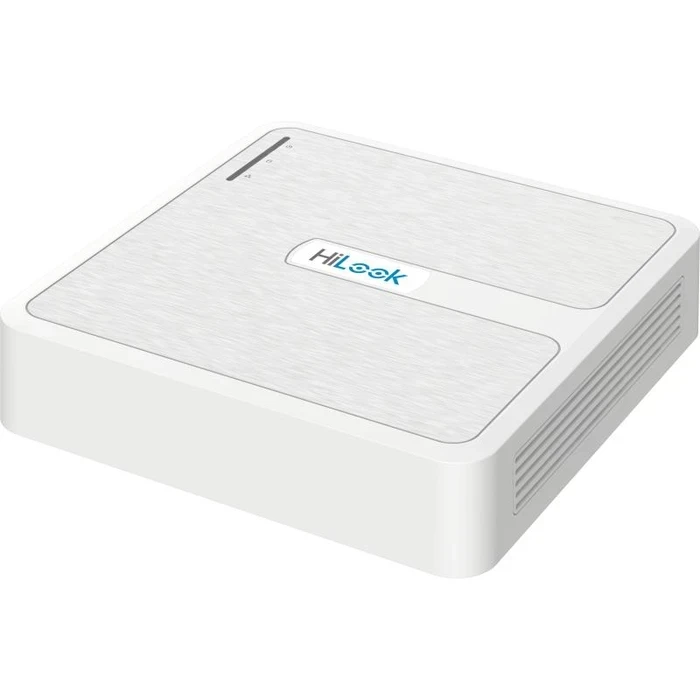

HiLook 4-Channel / 8-Channel Mini 1U Network Video Recorder | Full HD H.265+ 6MP IP Camera Inputs | Line Crossing Intrusion Detection 6TB SATA NVR | NVR-104H-D(D) / NVR-108H-D(D)
| Specification Category | NVR-104H-D(D) 4Ch NVR Details | NVR-108H-D(D) 8Ch NVR Details |
| Model Number ID | NVR-104H-D(D) | NVR-108H-D(D) |
| Gross Capacity | Up to 4-Channel Network IP Camera Input Lanes | Up to 8-Channel Network IP Camera Input Lanes |
| Cooling Type (Video Codec) | H.265+ / H.265 / H.264+ / H.264 Compression | H.265+ / H.265 / H.264+ / H.264 Compression |
| Compressor (Throughput) | 40 Mbps Incoming Bandwidth | 60 Mbps Outgoing | 60 Mbps Incoming Bandwidth | 60 Mbps Outgoing |
| Energy Rating (Power Draw) | Low-Energy Core Matrix ≤ 10 W (Without HDD) | Low-Energy Core Matrix ≤ 10 W (Without HDD) |
| Net Dimensions | 200 mm Width × 200 mm Depth × 48 mm Height | 200 mm Width × 200 mm Depth × 48 mm Height |
| Shelving (SATA Interface) | 1 Internal SATA Interface Interface Up to 6 TB | 1 Internal SATA Interface Interface Up to 6 TB |
| Body Material | Durable Structural Alloy & Protective Polymer Base | Durable Structural Alloy & Protective Polymer Base |
| Glass Type (Video Output) | Simultaneous 1-Ch HDMI & 1-Ch VGA (1080p/60Hz) | Simultaneous 1-Ch HDMI & 1-Ch VGA (1080p/60Hz) |
| Security (Target Analytics) | Line Crossing Detection, Intrusion Area Intercept | Line Crossing Detection, Intrusion Area Intercept |
| Portability (Decoding Max) | 4-Ch@1080p | 2-Ch@4 MP | 1-Ch@6 MP (30 fps) | 4-Ch@1080p | 2-Ch@4 MP | 1-Ch@6 MP (30 fps) |
| Lighting (Network Base) | 1 RJ-45 10/100 Mbps Self-Adaptive Node | 1 RJ-45 10/100 Mbps Self-Adaptive Node |
| Gas Type (Operating Profile) | 12 VDC, 1.5 A Power | 16 Remote App Connections | 12 VDC, 1.5 A Power | 16 Remote App Connections |
| Net Structural Weight | ≤ 1 kg (2.2 lb.) Compact Low-Profile Frame | ≤ 1 kg (2.2 lb.) Compact Low-Profile Frame |
-
Scalable IP Camera Input Architecture: Available in a focused 4-channel or an expansive 8-channel matrix configured to process and record high-definition IP video streams up to 6 MP resolution.
-
Balanced High-Throughput Bandwidth Core: Managed by a solid technical framework handling up to 40 Mbps/60 Mbps incoming and 60 Mbps outgoing traffic paths to prevent local network packet drops.
-
75% Storage Compression Savings: Combines advanced H.265+ encoding optimization with a heavy-duty internal SATA port supporting hard drives up to a massive 6 TB capacity to extend archiving intervals.
-
Smart Security Behavior Perimeter Detection: Programmed with smart edge processing analytics supporting automated line crossing and area intrusion alerts to isolate unauthorized on-site movements.
-
Simultaneous HDMI & VGA Output Rendering: Outfitted with dual simultaneous video outputs producing fluid 1920 x 1080p feeds at 60 Hz for crisp multi-channel synchronous monitoring layouts.
