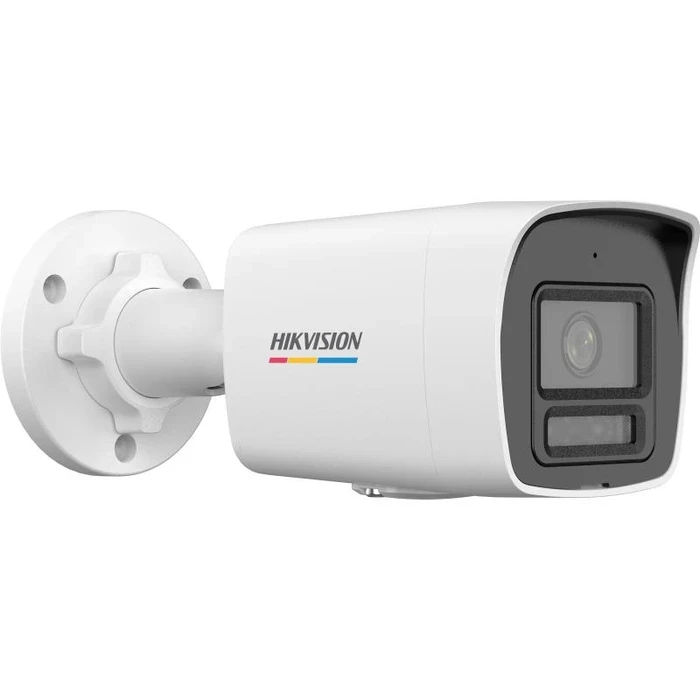

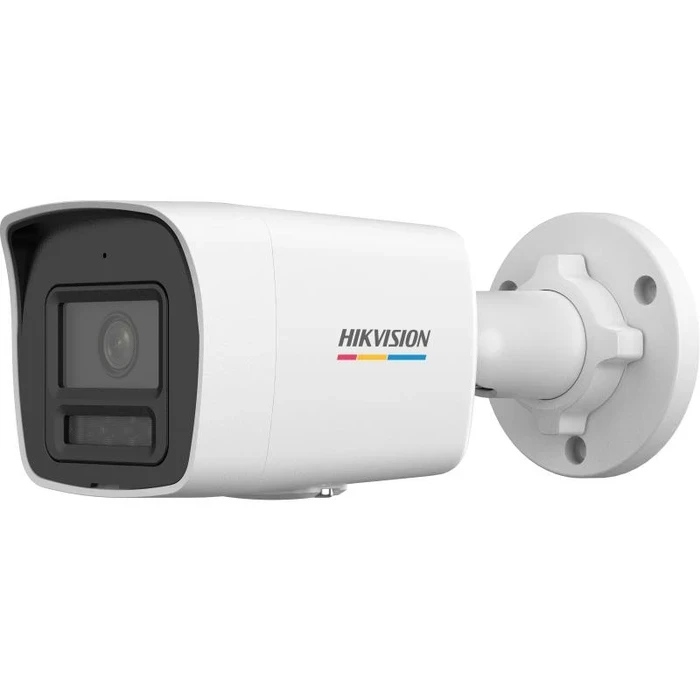

| Specification Category | Hikvision DS-2CD1027G3-LIU(F) Camera Details |
| Model Variants Covered | -LIU, -LIUF (SD Storage Slot), -LIU/SL (Strobe Light), -LIU/SRB (Red & Blue Strobe) |
| Gross Capacity | 1/2.8" Progressive Scan CMOS 2 Megapixel Digital Imaging Node |
| Cooling Type (Video Codec) | Main Stream: H.265+ / H.265 / H.264+ / H.264 High Profile |
| Compressor (Resolution) | 1920 × 1080 Full HD Smooth Video Processing Engine |
| Energy Rating (Power Draw) | 12 VDC ± 25% Max 6.6W / PoE IEEE 802.3af Class 3 Max 8W Grid |
| Net Dimensions | 69.1 mm × 66.9 mm × 172.9 mm (2.7" × 2.6" × 6.8") |
| Shelving (Lens Fields) | 2.8 mm Fixed (129° Diag FOV) / 4 mm Fixed (103° Diag FOV) Options |
| Body Material | Rigid Mechanical Structure (Metal Front Cover with Plastic Body & Bracket) |
| Glass Type (Aperture Profile) | Super-Aperture F1.0 Core with a 1.2 m to 1.3 m Start Depth of Field |
| Security (Local Storage) | Built-In MicroSD/SDHC/SDXC Slot Up to 512 GB (Available on -F Models) |
| Portability (Audio Modules) | Built-In Microphone with Environmental Noise Filtering (Mono Sound) |
| Lighting (Image Optimization) | 120 dB True WDR, BLC, HLC, 3D DNR, 4 Programmable Rectangular Privacy Masks |
| Gas Type (Network Integration) | TCP/IP, DHCP, Hik-Connect Client, Open-Network ONVIF API Profile S/G/T |
| Protection Certification | IP67 Water and Dust Ingress Resistant Rated (IEC 60529-2013) |
24/7 ColorVu 3.0 & F1.0 Ultra-Aperture: Engineered with a high-performance F1.0 large-aperture optical glass layout that draws maximum ambient light to capture ultra-vivid 24/7 full-color images under 0.0005 Lux.
Smart Hybrid Light & HikAI-ISP Core: Integrates a dual IR and White Light supplement source matching an intelligent artificial-intelligence image signal processor to provide elite image noise reduction up to 30 m.
Motion Detection 3.0 Target Analytics: Features highly accurate hardware edge processing algorithms configured to prioritize, detect, and classify human or vehicular targets while minimizing tracking false alarms.
Active Deterrence Strobe & Real-Time Audio: Outfitted on special configuration models (-SL/-SRB) with an intense flashing strobe light alarm paired with an integrated microphone providing immediate real-time two-way audio protection.
Industrial Weatherproof IP67 Bullet Construction: Built with a durable metal front cover paired with an impact-resistant polymer main body and mounting bracket, providing reliable dust and fluid sealing from -30 °C to 60 °C.
