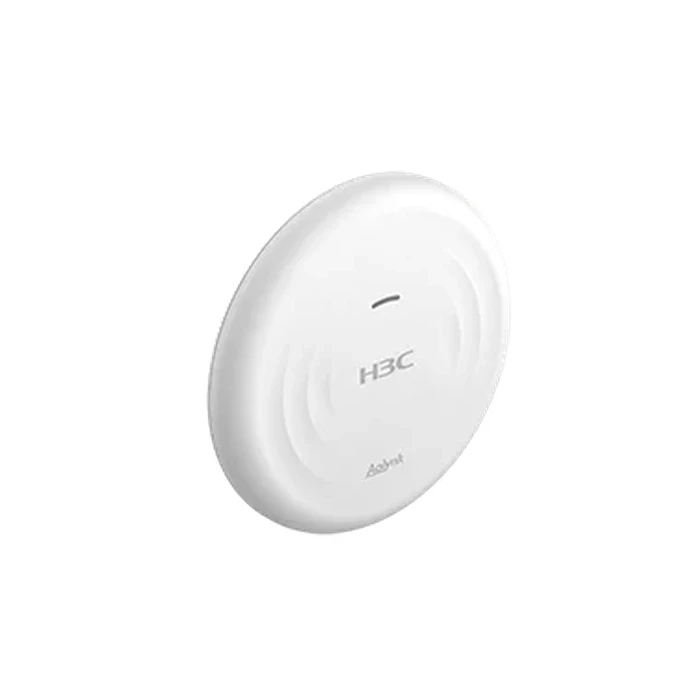

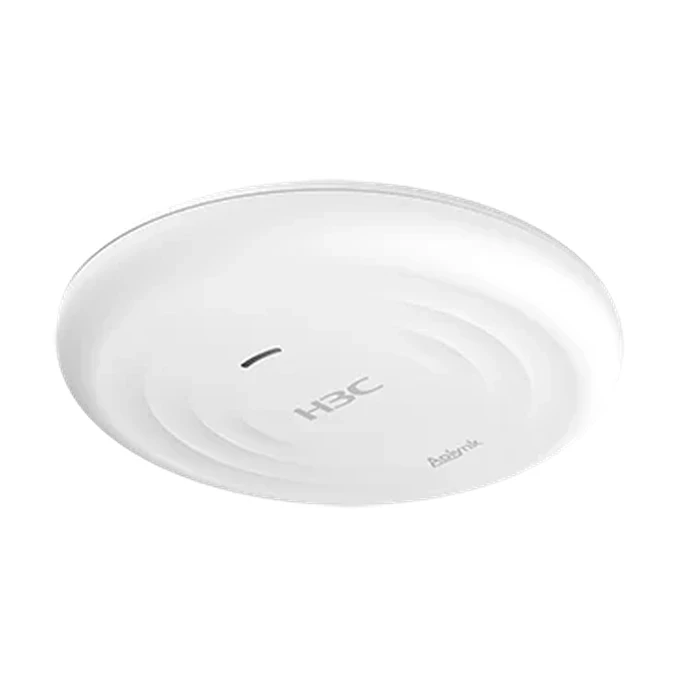

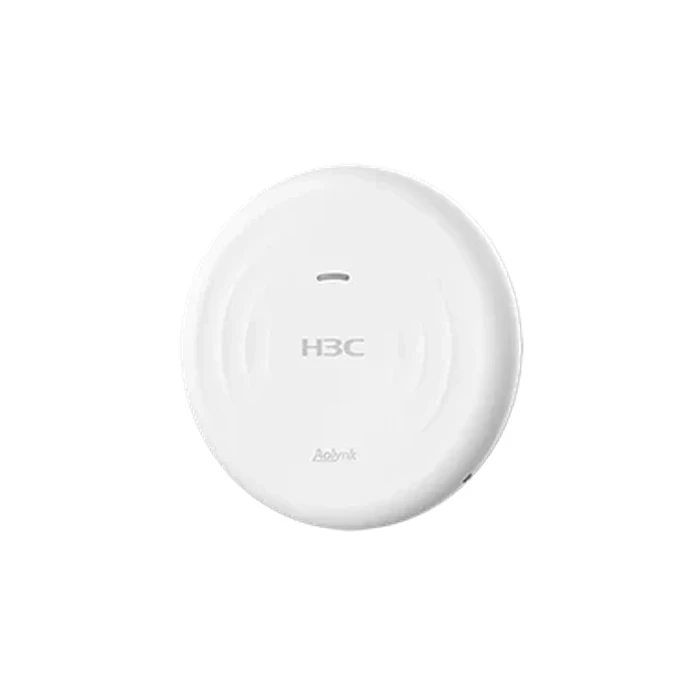

H3C UAP522G-AC13 Ceiling Mount Dual-Band WiFi 5 Wireless Access Point | 1300Mbps 2x2 MIMO 802.3at PoE Gigabit Enterprise AP | H3C Series - UAP522G-AC13
Up to Rs 750.00 OFF
Up to Rs 7,000.00 OFF
Up to Rs 16,000.00 OFF
Rs 20,000.00 OFF
| Feature | Details |
| Brand | H3C |
| Model Number | UAP522G-AC13 |
| Product Type | Ceiling Mount Dual-Band Wireless Access Point (AP) |
| Wireless Protocol | IEEE 802.11ac Wave 2 / n / g / b / a (Wi-Fi 5) |
| Maximum Wireless Speed | Aggregated ~1300 Mbps (5 GHz: 866.7 Mbps + 2.4 GHz: 400 Mbps) |
| Radio Configuration & MIMO | Dual-Band Simultaneous 2x2 MIMO (Radio 1: 5G 2x2; Radio 2: 2.4G 2x2) |

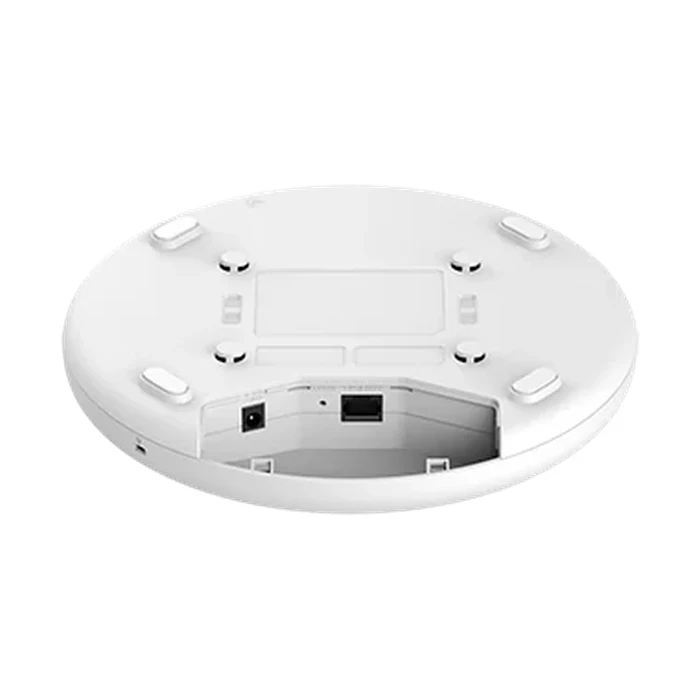

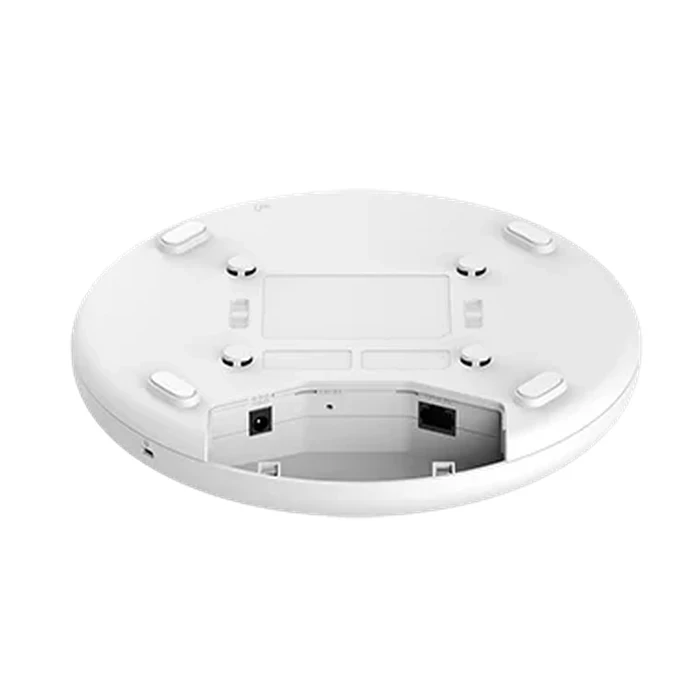

| Fixed Uplink Port | 1 x 10/100/1000 Mbps Auto-Negotiating RJ45 Ethernet Port |
| Power Supply (PoE) | Supports Standard IEEE 802.3at PoE |
| Maximum Power Consumption | ≤ 11.35 W |
| Antenna Architecture | Built-in Omnidirectional Antennas (2.4 GHz: 3 dBi; 5 GHz: 4 dBi) |
| Transmit Power | 2.4 GHz: 23.5 dBm; 5 GHz: 22.5 dBm (Adjustable in 10% Granularity) |
| Modulation Technologies | MIMO-OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM), OFDM, DSSS |
| Operating Temperature & Humidity | 0°C to 45°C; 5% to 95% Relative Humidity (Non-Condensing) |
| MTBF (Reliability) | 2,229,720 Hours |
| Physical Dimensions & Weight | 220 mm x 220 mm x 35 mm; 380 g |
| Enclosure Color & Form | Pure White Ceiling Mount Low-Profile Chassis |
| Regulatory Certifications | CE, CB, RoHS |
| Best Used For | Corporate Offices, Educational Institutions, Hotels, Retail Stores & High-Density Commercial Wi-Fi |
-
Dual-Band 1300 Mbps Aggregated Throughput: Combines high-speed 5 GHz (866.7 Mbps) and 2.4 GHz (400 Mbps) concurrent radios with 2x2 MIMO to provide high bandwidth for multi-user environments.
-
Standard IEEE 802.3at PoE Integration: Powered via a single 10/100/1000 Mbps auto-negotiating Gigabit Ethernet uplink port, streamlining ceiling mounting without requiring local power outlets.
-
High-Efficiency Built-in Omnidirectional Antennas: Features integrated high-gain antennas (3 dBi on 2.4 GHz and 4 dBi on 5 GHz) that deliver broad 360-degree wireless propagation across enterprise interiors.
-
Low-Profile Aesthetic Ceiling Mount Housing: Compact 220 x 220 x 35 mm footprint with a clean white casing and 380 g build integrates unobtrusively into commercial ceiling tiles and wall partitions.
-
Enterprise-Class Reliability & Efficiency: Engineered for continuous 24/7 duty with an MTBF of 2,229,720 hours, maximum power draw under 11.35 W, and international CE, CB, and RoHS certifications.
