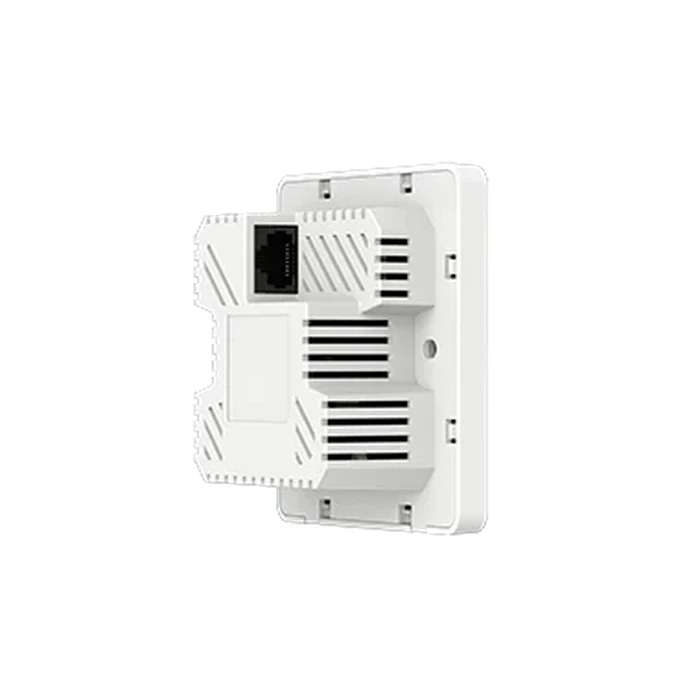

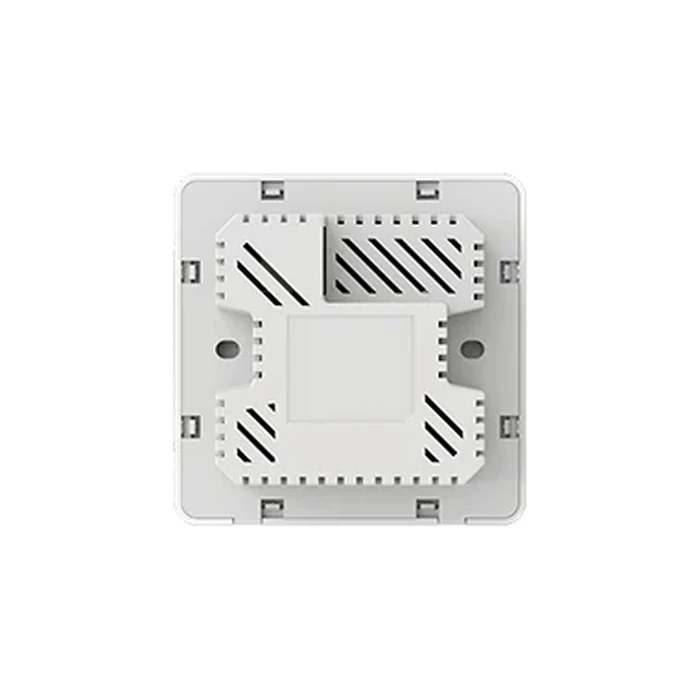

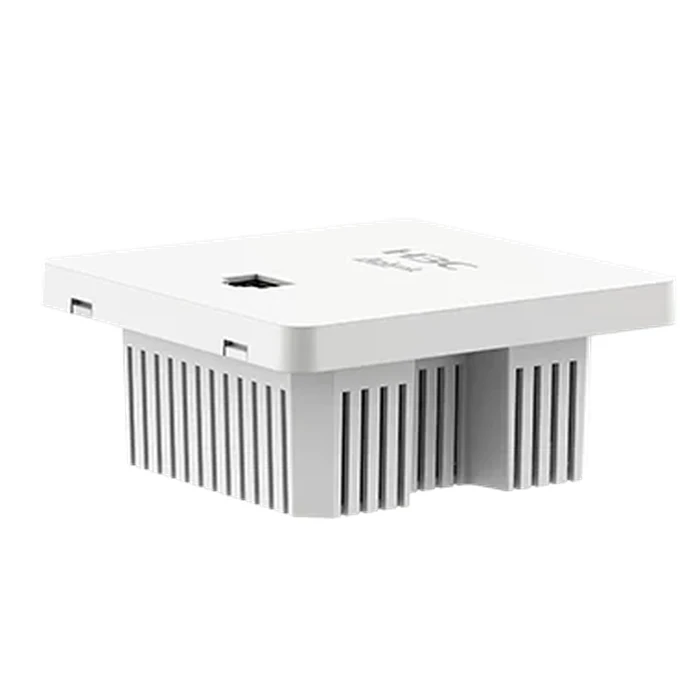

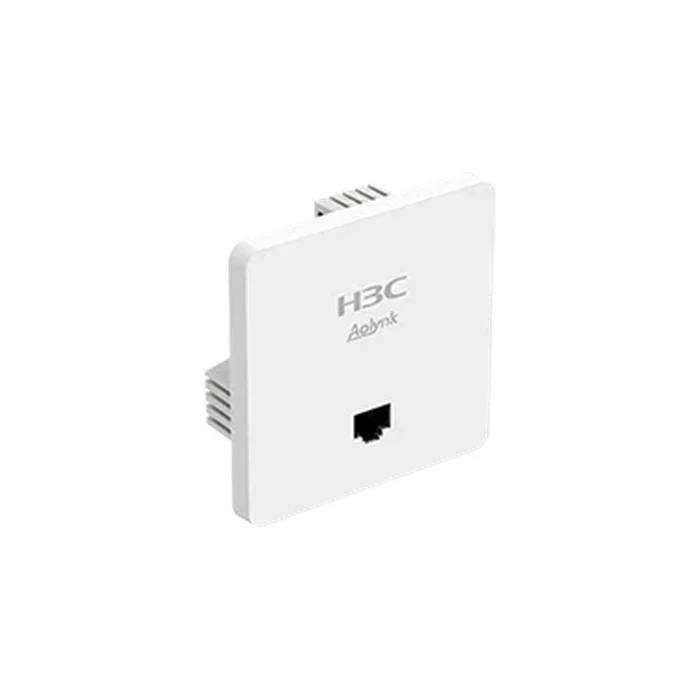

H3C UAP512G-AC13 86-Type Wall Plate Dual-Band WiFi 5 Wireless Access Point | 1300Mbps 802.3af PoE with Gigabit Front LAN Port | H3C Series - UAP512G-AC13
Up to Rs 750.00 OFF
Up to Rs 7,000.00 OFF
Up to Rs 16,000.00 OFF
Rs 20,000.00 OFF
| Feature | Details |
| Brand | H3C |
| Model Number | UAP512G-AC13 |
| Product Type | Wall Plate Dual-Band Wireless Access Point (AP) |
| Wireless Protocol | IEEE 802.11ac Wave 2 / n / g / b / a (Wi-Fi 5) |
| Maximum Wireless Speed | Aggregated ~1300 Mbps (5 GHz: 866.7 Mbps + 2.4 GHz: 400 Mbps) |
| Radio Configuration & MIMO | Dual-Band Simultaneous 2x2 MIMO (Radio 1: 5G 2x2; Radio 2: 2.4G 2x2) |
| Fixed Ports | Uplink: 1 x 10/100/1000 Mbps RJ45 (PoE Powered) / LAN: 1 x 10/100/1000 Mbps RJ45 |
| Power Supply (PoE) | Supports Standard IEEE 802.3af PoE |
| Maximum Power Consumption | ≤ 11.65 W |
| Antenna Architecture | Built-in Omnidirectional Antennas (2.4 GHz: 3 dBi; 5 GHz: 4 dBi) |
| Transmit Power | 2.4 GHz: 18 dBm; 5 GHz: 17 dBm (Adjustable in 10% Granularity) |
| Modulation Technologies | MIMO-OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM), OFDM, DSSS |
| Operating Temperature & Humidity | 0°C to 40°C; 5% to 95% Relative Humidity (Non-Condensing) |
| MTBF (Reliability) | > 613,200 Hours at 25°C |
| Physical Dimensions & Weight | 86 mm x 86 mm x 37 mm; 160 g |
| Case Color Options | Pure White (Default); Black, Gold, Grey (Optional) |
| Regulatory Certifications | CE, CB, RoHS |
| Best Used For | Hotel Guest Rooms, Hospital Suites, Student Dormitories, Modern Apartments & In-Wall Network Drops |
-
Dual-Band 1300 Mbps Aggregated Throughput: Combines high-speed 5 GHz (866.7 Mbps) and 2.4 GHz (400 Mbps) concurrent radios with 2x2 MIMO and 256-QAM modulation for fast, localized in-room data transmission.
-
Standard 86-Type Junction Box Form Factor: Compact 86 x 86 x 37 mm flush-mount profile installs directly into standard in-wall junction boxes, eliminating exposed cabling and bulky hardware.
-
Integrated Front Gigabit LAN Port: Features a front-accessible 10/100/1000 Mbps Ethernet port alongside the rear PoE uplink, enabling simultaneous wired connections for IPTVs, VoIP phones, or laptops.
-
Standard IEEE 802.3af PoE Powering: Powered conveniently via standard 802.3af PoE over the rear network cable, requiring no external AC power adapters or separate electrical drops.
-
Enterprise In-Room Reliability & Aesthetics: Rated for over 613,200 hours MTBF with low power consumption under 11.65 W, certified by CE, CB, and RoHS for hospitality and residential installations across Nepal.
