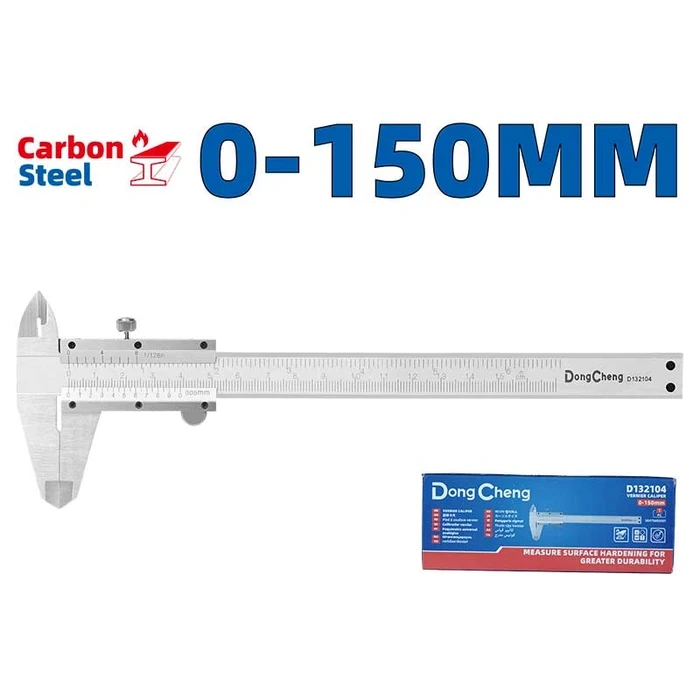

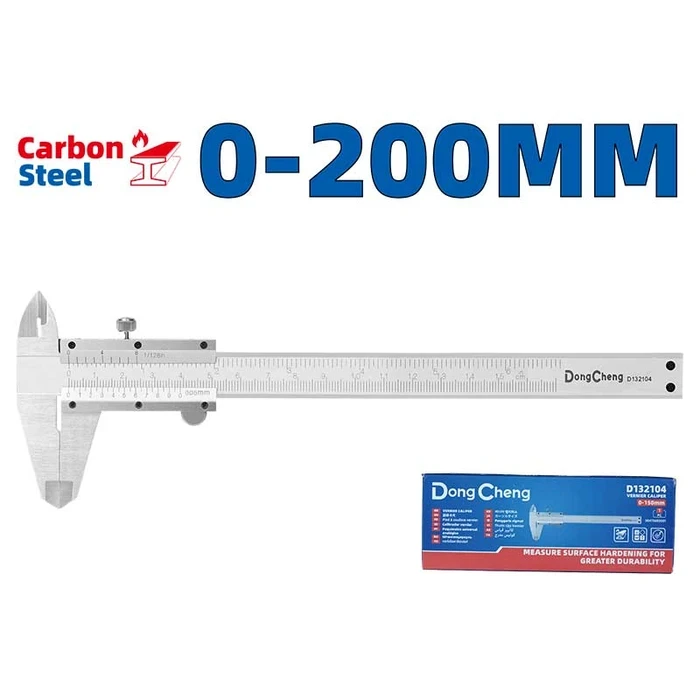

Dongcheng DG Carbon Steel Vernier Caliper Series (0–150mm & 0–200mm) | 0.05mm High-Precision 4-Way Measurement with Metric/Inch Dual Scale | DG Series
| Specification | Parameter |
| Brand / Manufacturer | Dongcheng |
| Series / Model Line | DG Series Vernier Caliper Range |
| Product Type | Manual Dual-Scale Mechanical Vernier Caliper |
| Available Measuring Ranges | 0–150 mm (0–6 Inch) | 0–200 mm (0–8 Inch) |
| Resolution / Reading | 0.05 mm |
| Material Construction | Hardened High-Grade Carbon Steel |
| Measurement Systems | Dual Metric (mm) & Imperial (inches) Graduations |
| Measurement Types | 4-Way: Outside Diameter (OD), Inside Diameter (ID), Depth & Step |
| Locking Mechanism | Top Knurled Brass/Steel Thumb Locking Screw |
| Scale Marking Method | High-Contrast Permanent Engraved Graduations |
| Power Source | 100% Mechanical (No Batteries Required) |
| Application | Lathe Work, Engine Rebuilding, Machine Shops, Quality Control & Toolmaking |
| Best Used For | Close-Tolerance Machining, Shaft Sizing & Battery-Free Reliability across Nepal |
-
Four-Way Versatile Measurement: Accurately measures external dimensions, internal bore diameters, hole depths, and stepped surfaces using a single mechanical tool.
-
0.05mm Precision Vernier Resolution: Fine micro-graduated vernier scale delivers 0.05mm resolution for high-accuracy engineering inspection and metal fabrication verification.
-
Hardened Carbon Steel Construction: Robust carbon steel body and ground measuring jaws resist dimensional wear, burring, and deflection under continuous mechanical use.
-
Dual-Scale Metric & Imperial Markings: Laser-etched, wear-resistant graduations feature millimeter and inch conversions on the main beam and vernier plate for fast, error-free reading.
-
Locking Screw & Smooth Slider: Top-mounted knurled thumb lock screw secures the sliding jaw at any position to freeze dimensions for repetitive tolerance checking across Nepal.
