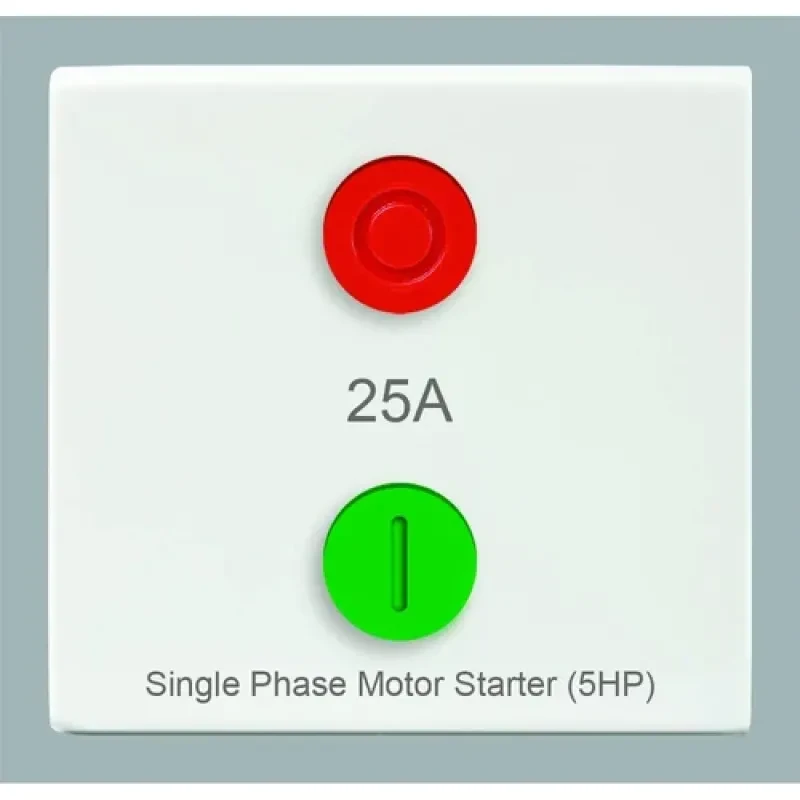

Anchor Penta Modular 2-Module (2M) 25A Single Phase Motor Starter Switch 240V | Heavy-Duty Push-Button Controller for Submersible Pumps & Heavy ACs | 65125 (White) & 65125B (Black)
| Specification Attribute | Model: 65125 | Model: 65125B |
| Brand | Anchor | Anchor |
| Series / Model | Penta Modular | Penta Modular |
| Item Code / Product Code | 65125 | 65125B |
| Product Type | Motor Starter Switch | Motor Starter Switch |
| Common / Generic Name | Motor Starter Switch | Motor Starter Switch |
| Rated Current | 25 Amp | 25 Amp |
| Operating Voltage & Frequency | 240 V AC, 50 Hz | 240 V AC, 50 Hz |
| Number of Phases | Single Phase | Single Phase |
| Number of Modules | 2 Module (2M) | 2 Module (2M) |
| Actuator Buttons | Dual Push Buttons (Red: Stop / Green: Start) | Dual Push Buttons (Red: Stop / Green: Start) |
| Color Finish | White | Black |
| Material | Flame-Retardant Engineering Plastic | Flame-Retardant Engineering Plastic |
| Dimensions (L x W x H) | 140 x 67 x 45 mm (Packaged) | 41 x 48 x 58 mm (Module Body) |
| Unit Packaging | 1 Piece | 1 Piece |
| Mounting Mechanism | Snap-In Modular Flush Mount | Snap-In Modular Flush Mount |
| Target Applications | Deep Submersible Pumps, Commercial ACs & Workshops | High-Capacity Domestic Pumps & Heavy Utilities |
| Suitable For / Best Used For | 2.0–3.0 HP Water Pumps & 2.0–2.5 Ton Air Conditioners | Direct In-Wall Control of Heavy Single-Phase Inductive Loads |
-
High-Capacity 25A Inductive Load Rating: Engineered specifically to withstand high locked-rotor start surges and continuous run currents up to 25 Amps for heavy 240V single-phase motors and compressors.
-
Dual Push-Button Operation: Equipped with distinct, color-coded tactile actuators (Green for Start / Red for Stop) that ensure intuitive, fail-safe motor operation and immediate manual cutoff.
-
Heavy-Duty Silver Alloy Contacts: Utilizes thick silver-faced contact tips and integrated arc-quenching internal channels to eliminate contact sticking, pitting, and thermal welding.
-
Integrated 2-Module (2M) Flush Design: Mounts directly into standard Anchor Penta Modular grid plates, eliminating the need for bulky external metal starter boxes and maintaining clean switchboard aesthetics.
-
Dual Architectural Finish Profiles: Available in Standard White (65125) for traditional utility installations and Black (65125B) for sleek contemporary spaces and dark designer switch panels.
