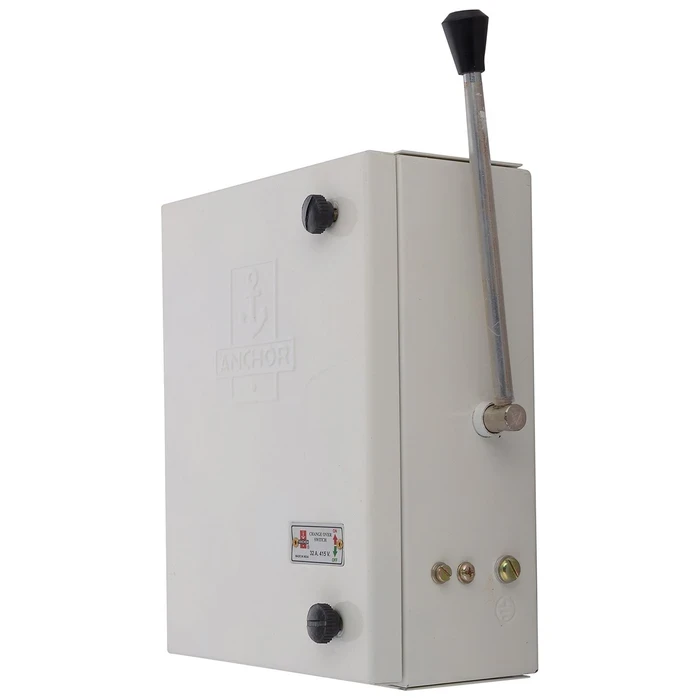

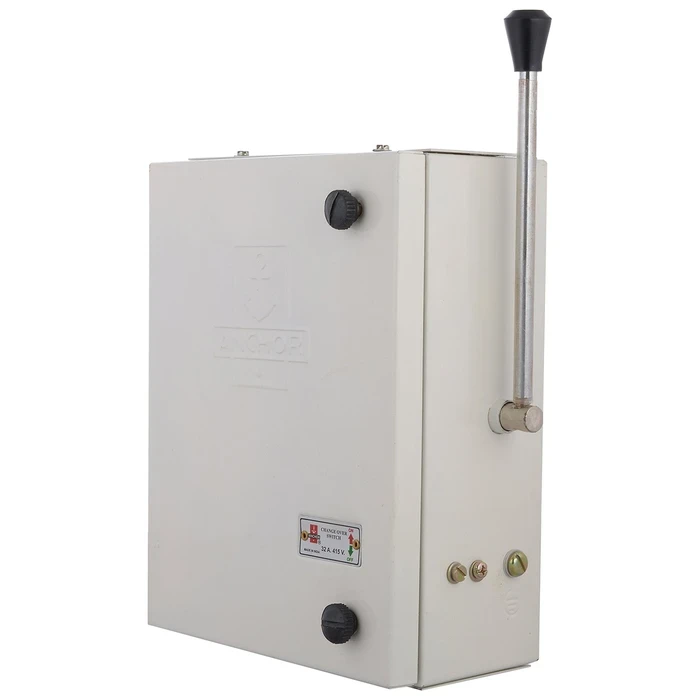

Anchor by Panasonic 32A 415V Double Pole Metal Manual Changeover Switch | Single-Phase Mains to Generator Power Transfer Switch for Residential & Commercial Distribution | 17728
| Specification Category | Specification Detail |
| Brand Profile | Anchor by Panasonic |
| Model Number | 17728 |
| Product Series | Industrial Switchgear / Metal Series |
| Product Category / Type | Double Pole Manual Changeover Switch (Transfer Switch) |
| Rated Current Capacity | 32 Amp |
| Rated Operating Voltage | 415 V AC (Standard Operational Compatibility at 240V/415V) |
| Operating Frequency | 50 Hz |
| Number of Poles | Double Pole (2 Pole / DP - Phase + Neutral) |
| Switching Mechanism | Break-Before-Make (Position I - Center Off - Position II) |
| Contact / Terminal Material | Heavy-Gauge High-Conductivity Electrolytic Copper / Brass |
| Enclosure Material | Metal-Clad Housing with Powder-Coated Finish |
| Available Color Finish | Standard White |
| Physical Dimensions (L x W x H) | 10.0 x 5.0 x 5.0 cm |
| Product Weight | Approx. 0.100 kg (100 g) |
| Mounting / Placement | Panel Mount / Distribution Board Enclosure / Surface Wall Mount |
| Ideal Applications | Residential Main Panels, Retail Shops, Commercial Offices, Generator Transfer Boards, Inverter Feeds |
| Best Used For | 32A Double-Pole Mains-to-Generator Power Transfer & Circuit Isolation across Nepal |
-
Robust 32A Double-Pole Switching: Built to continuously handle balanced live and neutral loads up to 32 Amps across residential buildings, shops, and workshops.
-
Break-Before-Make Safety Mechanism: Features a dedicated Center-Off position to ensure complete physical separation between utility mains and backup generator power, preventing accidental back-feeding.
-
High-Conductivity Copper Contacts: Heavy-gauge electrolytic copper contact blades and spring-tensioned jaws maintain low electrical resistance and prevent terminal overheating under continuous load.
-
Durable Metal-Clad Enclosure: High-grade metal construction with arc-resistant internal barriers prevents phase-to-neutral flashovers and provides mechanical protection.
-
Positive Mechanical Detent Handle: Front-facing manual operating lever provides firm, unambiguous tactile feedback for Position I (Mains), Center-Off (Isolation), and Position II (Generator).
