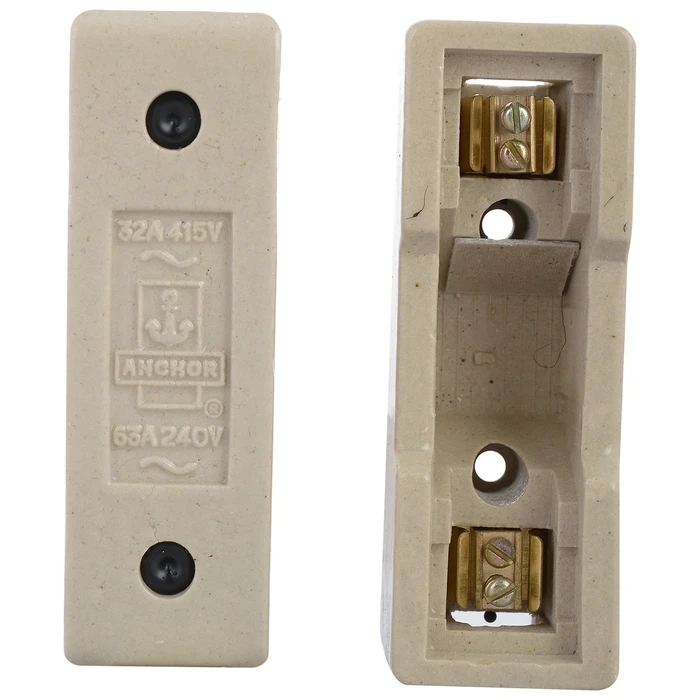

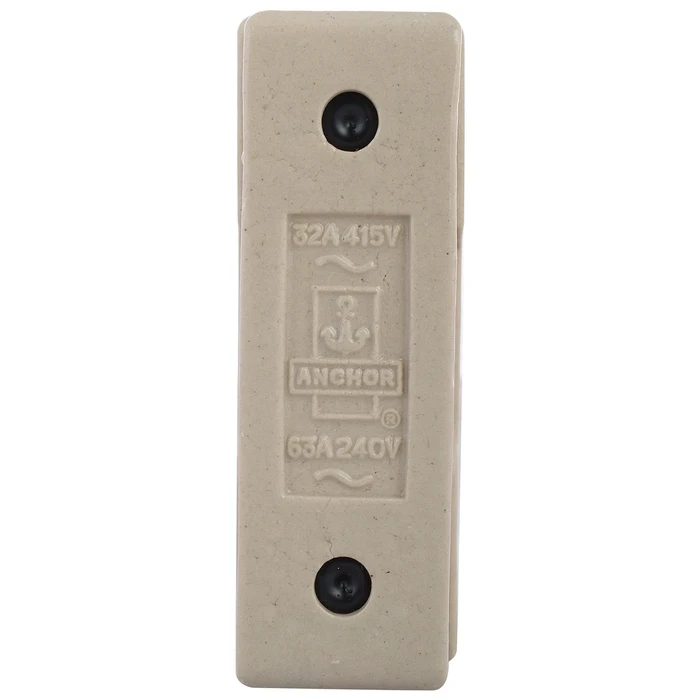

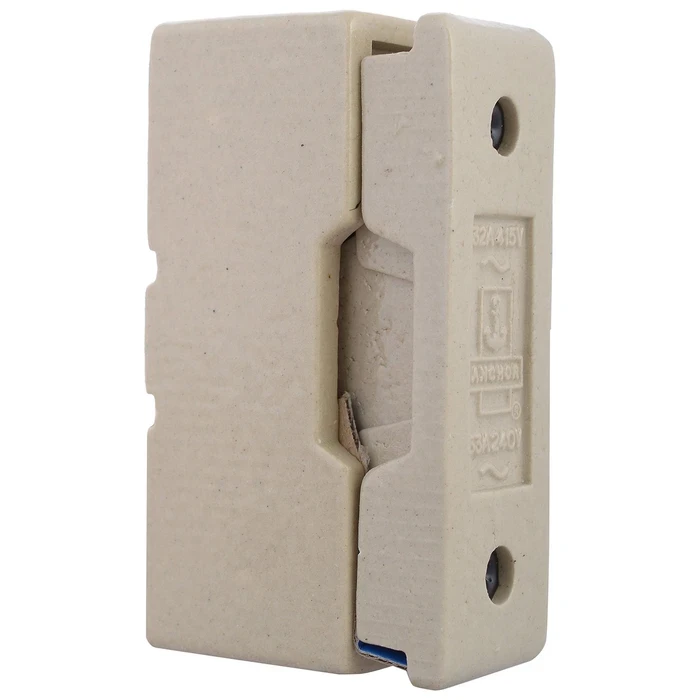

Anchor by Panasonic 32A 415V / 63A 240V Porcelain Rewirable Kitkat Fuse Unit | Commercial & Residential Panel Board Overcurrent Protection Cutout | 9311
| Specification Category | Specification Detail |
| Brand Profile | Anchor by Panasonic |
| Model Number | 9311 |
| Product Series | Pilot Series / Industrial Switchgear |
| Product Category / Type | Heavy-Duty Rewirable Kitkat Fuse Unit (Porcelain Cutout) |
| Rated Current Capacity | 32 Amp (at 415V AC) / 63 Amp (at 240V AC) |
| Rated Operating Voltage | 240 V / 415 V AC |
| Operating Frequency | 50 Hz |
| Phase Alignment | Single Phase / Three Phase (Single Pole Unit for Modular Mounting) |
| Body Construction | High-Grade Vitrified Electrical Porcelain Ceramic |
| Contact / Terminal Material | Heavy-Gauge High-Conductivity Copper / Brass Alloy |
| Terminal Connection | Heavy-Duty Screw Clamp Terminals for Cable Lugs & Solid Conductors |
| Physical Dimensions (L x W x H) | 10.0 x 5.0 x 5.0 cm |
| Mounting / Placement | Wall Mount / Distribution Board Mount / Meter Panels |
| Ideal Applications | Residential Main Panels, Commercial Meter Boards, Workshops, Small Motor Feeders, Pump Panels |
| Best Used For | 32A/63A Dual-Rating Overcurrent Protection & Short-Circuit Safeguarding across Nepal |
-
Dual Voltage-Current Rating: Engineered to safely handle 32 Amps on 415V three-phase systems or up to 63 Amps on 240V single-phase electrical lines.
-
Vitrified Electrical Porcelain Construction: High-grade ceramic base and bridge carrier provide non-tracking dielectric insulation, high thermal tolerance, and arc-quenching safety.
-
Detachable Rewirable Carrier Handle: Ergonomically contoured porcelain bridge allows safe manual removal and quick rewiring of tinned copper fuse wire elements.
-
High-Conductivity Copper Contacts: Heavy-gauge copper alloy blades and spring-tensioned terminal jaws ensure firm contact pressure to prevent arcing and localized heat buildup.
-
Compact Surface-Mount Profile: Compact 10 x 5 x 5 cm footprint fits neatly on wooden boards, distribution panels, meter enclosures, and industrial switchboards.
