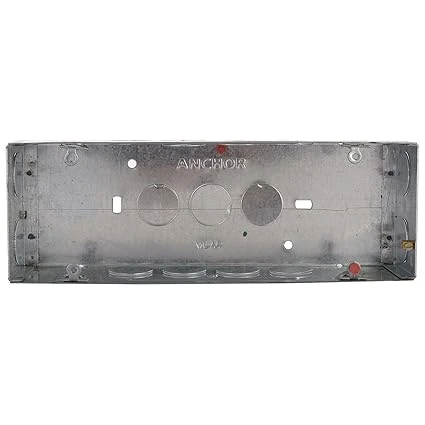

Anchor 8 or 9 Module (8M/9M) Horizontal Concealed Galvanised Metal Box 79x230x52 mm | 120 GSM Anti-Rust GI In-Wall Switchboard Flush Enclosure | 30453
| Specification Attribute | Technical Detail |
| Brand | Anchor |
| Product Code / Item Code | 30453 |
| Generic / Common Name | GI Boxes (Concealed Galvanised Metal Boxes) |
| Modular Capacity & Orientation | 8 Module (8M) or 9 Module (9M) – Horizontal |
| Material | Heavy-Gauge Galvanised Iron (GI) |
| Protective Coating | 120 GSM Zinc Galvanisation |
| Dimensions (Box Envelope - L x B x D) | 79 x 230 x 52 mm |
| Packaged Dimensions (L x B x H) | 10.0 x 5.0 x 5.0 cm |
| Product Weight | 0.1 kg |
| Internal Depth | 52 mm |
| Unit Packaging | 1 Piece |
| Earthing Provision | Integrated Dedicated Earth Terminal Screw |
| Mounting Style | Concealed In-Wall Flush Mount (Brick, Concrete, Drywall) |
| Target Applications | Living Rooms, Master Bed Consoles, Kitchens & Workstations |
| Best Used For | Rough-in Enclosure for 8M/9M Combined Switches, Regulators & Sockets |
-
Certified 120 GSM Zinc Galvanisation: Coated with a protective 120 GSM zinc layer that resists rust, wall dampness, and concrete alkalinity over extended service periods.
-
8-Module & 9-Module Horizontal Layout: Accommodates standard 8M and 9M horizontal grid mounting plates, providing mounting support for comprehensive switchboard, socket, and media port layouts.
-
Extended 52 mm Deep Cavity: Features a 79 x 230 mm form factor with an interior depth of 52 mm, offering clear volume for multiple phase feeds, neutral loops, and bulky modular inserts.
-
Dedicated Grounding Earthing Terminal: Fitted with an integrated low-resistance earthing terminal screw to establish positive earth continuity and prevent shock hazards.
-
Heavy-Gauge Anti-Deformation Frame: Precision-stamped with rigid structural ribs and factory-tapped threaded lugs that resist wall pressure during plastering while keeping screw alignment accurate.
