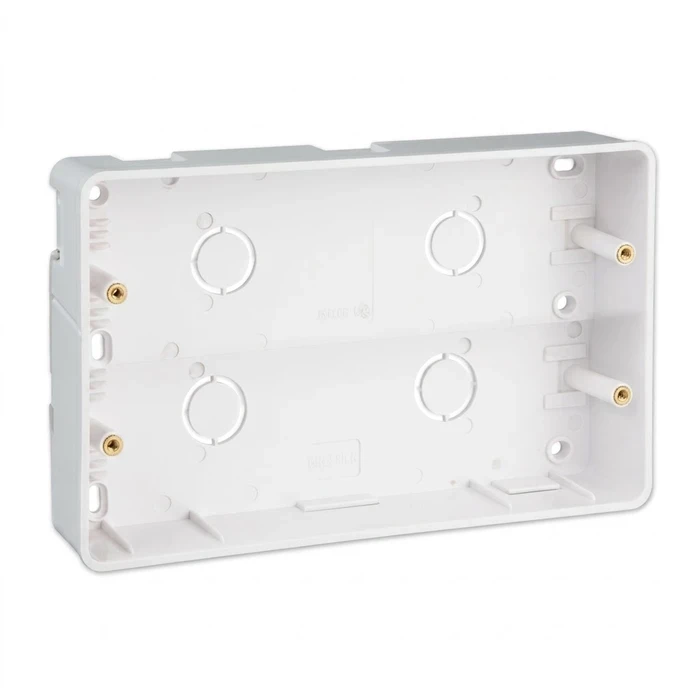

Anchor 16-Module (16M) Surface Plastic Box | High-Impact Non-Corrosive Electrical Enclosure with Metal Thread Inserts | 34567 (153x259x40 mm) & 34568 (230x153x50 mm)
| Specification Attribute | Model: 34567 | Model: 34568 |
| Brand | Anchor | Anchor |
| Product Code / Item Code | 34567 | 34568 |
| Generic / Common Name | Surface Boxes | Surface Boxes |
| Modular Capacity | 16 Module (16M) | 16 Module (16M) |
| Enclosure Dimensions (L x B) | 153 x 259 mm | 230 x 153 mm |
| Internal Depth | 40 mm | 50 mm (Extra-Deep) |
| Material | High-Impact Flame-Retardant Polymer | High-Impact Flame-Retardant Polymer |
| Mounting Hardware Feature | Embedded Metal / Brass Thread Inserts | Embedded Metal / Brass Thread Inserts |
| Packaged Dimensions (L x B x H) | 15.0 x 10.0 x 5.0 cm | 15.0 x 10.0 x 5.0 cm |
| Product Weight | 0.1 kg | 0.1 kg |
| Unit Packaging | 1 Piece | 1 Piece |
| Electrical Insulation | Shock-Proof / Non-Conductive Casing | Shock-Proof / Non-Conductive Casing |
| Conduit & Trunking Entry | Integrated Multi-Knockouts | Integrated Multi-Knockouts |
| Mounting Style | Direct On-Wall Surface Mount | Direct On-Wall Surface Mount |
| Target Applications | Workstations, Office Cabins & Labs | Central Distribution, Server Rooms & Control Panels |
| Best Used For | Standard 16M Surface Switchboards & Outlets | Deep-Mechanism 16M Modular Plates & Heavy Feeds |
-
High-Impact Flame-Retardant Polymer: Precision-molded from robust engineering plastic providing complete electrical insulation, high mechanical rigidity, and total immunity to corrosion.
-
Integrated Metal Thread Inserts: Factory-embedded brass/metal screw inserts prevent thread stripping, maintaining dependable retention torque across repeat maintenance operations.
-
High-Capacity 16-Module (16M) Layout: Accommodates standard 16-module multi-tier Anchor Penta Modular and Roma Urban grid plates for high-density switchboards, socket banks, and automation controls.
-
Two Specialized Footprint & Depth Variants: Offers the low-profile 34567 (153 x 259 x 40 mm) for standard surface trunking and the extra-deep 34568 (230 x 153 x 50 mm) for high wire volume and heavy-load mechanisms.
-
Clean Surface-Mount Versatility: Attaches directly to masonry, drywall, timber, or partition frames without structural chasing, integrating neatly with surface conduits and casing-capping systems across Nepal.
